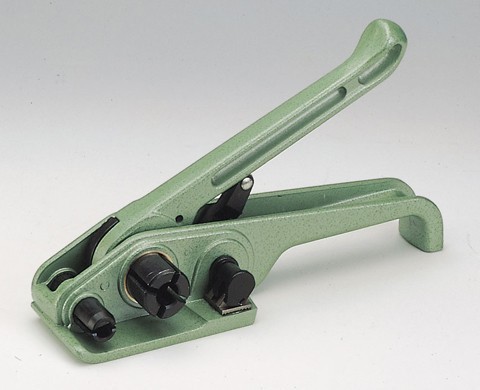

Strap Tensioner H-22R and Sealer H-35 (for straps 9-19 mm)

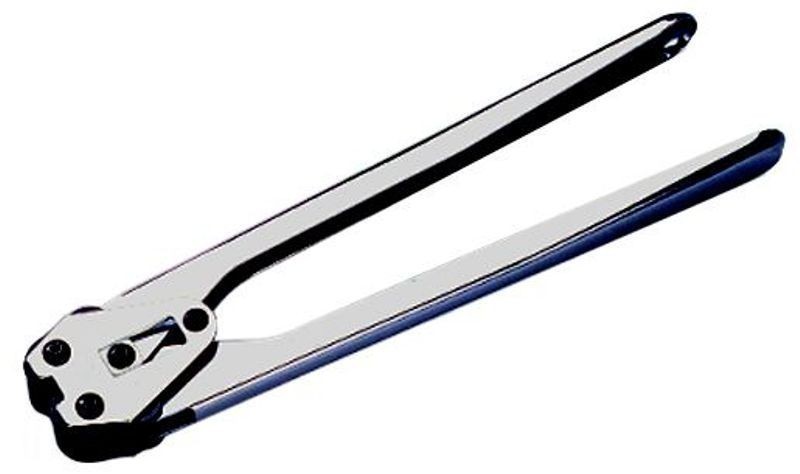

It is used for tensioning PP tape of width 9, 10, 12, 15, 16 or 19 mm. The joint can be made with a wire (self-locking), plastic or steel buckle of adequate width as the tape. The wire buckle is particularly suitable for binding wood, the plastic buckle is suitable for packing lighter items where a metal buckle cannot be used. The steel buckle is mainly used for binding pallets where the joint is made in a vertical position. The H-35 pliers are used to close the steel buckle. Our unwinders are a suitable complement to these strapping machines. They prevent unwinding and deterioration of the tape winding, allow easy handling, prevent waste of binding material and reduce the risk of work accidents. To facilitate work with heavier tools, we recommend the use of balancers, which balance the weight of the suspended tool during work. The range of unwinders, cutters and balancers can be found under accessories, other.

Interested in this product? Contact us for a custom quote.

Dimensions and Variants

descriptionRecommended tapejoint designtape width [mm]Tape thickness [mm]weight [kg]dimensions L x W x H [mm]Recommended Accessories
H-22 R TensionerPPType B clips9, 10, 12, 15, 16, 190,35 - 0,901,20270 x 70 x 160OP-6, OP-10
H-35 Crimping PliersPPclip type (2 002 00, 2 004 00)12, 15, 160,50 - 0,901,80430 x 100 x 50OP-6, OP-10
