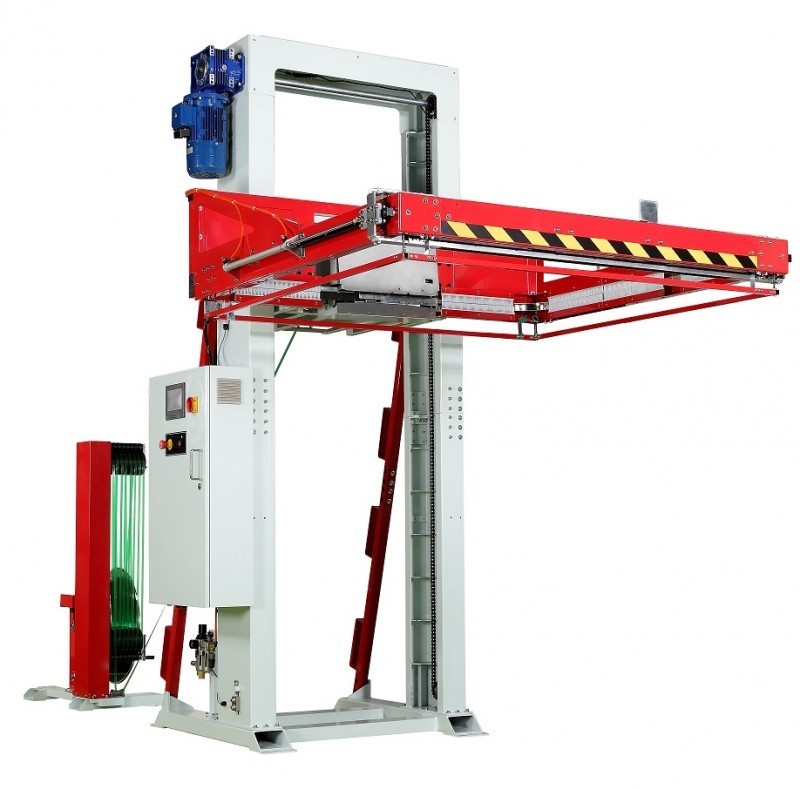

Horizontal strapping machine TP-713H CASTOR II - for PP or PET straps

Strapping machine horizontal TP-713H CASTOR II - for PP or PET tapes This strapping machine is designed for strapping with PP and PET tape and is suitable for a wide range of goods on pallets, e.g. bricks, fruit, cans, bottles, beverages and all kinds of goods on pallets. Benefits include user-friendly and modern design, low packaging costs, extremely durable robust friction welding head, Siemens PLC touch screen control panel - easy set-up, operating instructions, troubleshooting guide, user-friendly TEACH-IN program, movable tape head with maximum 300 mm of extension to ensure the best tape tension, friction welding option - high quality, high strength weld, high tightening force up to 3000 N (300 kg), allowing the use of a wide range of PP and PET tapes. The smooth movement of the reverser is controlled by a frequency converter which prevents vibrations. The machine has a reinforced robust design with two-column guidance - for greater reliability and safety, and adjustable welding and weld cooling times - for optimum welding. Easy integration into new or existing packaging lines. Optional accessories - moving head, error status indicator (semaphore), stand-alone control panel, HMI control on opposite side, strapping head with lower tension force 200 - 1200 N (20 - 120 kg).

Interested in this product? Contact us for a custom quote.

Technical parameters

ParameterValue
product designation700 010251
supply voltage230V/50Hz
binding tape - materialPP, PET
binding tape width9 - 15 mm
mass875 kg
machine length2820 mm
machine width1857 mm
machine height3120 mm
tightening force1100-3000 N (200 - 1200N)
outer diameter of the winding cavity400 - 406 mm
max. power60 pallets/hour.
min. package size item size (W x H)750 x 750 mm
max. package size item (W x H)1200 x 1200 x 1200 mm
width of the border1400 mm
height of the obvader1450 mm
