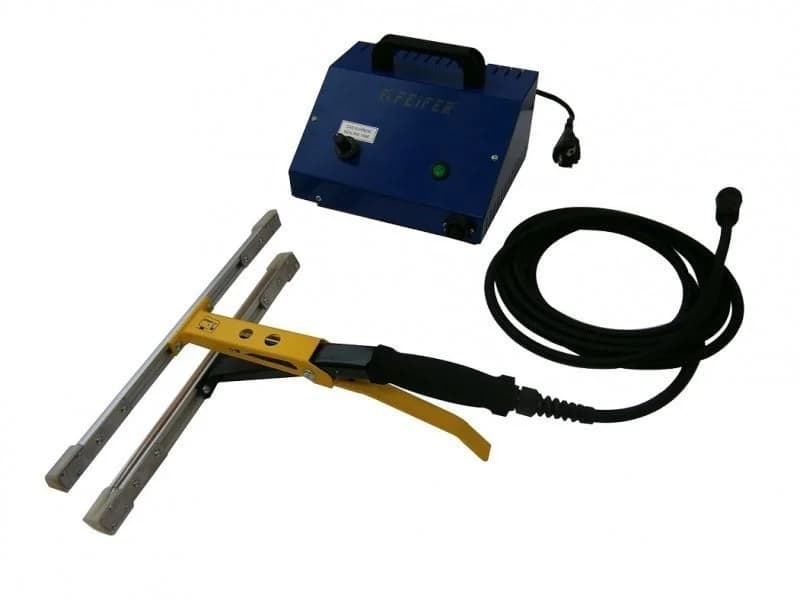

Sealing Jaw SO-30H - Hand Clamp, Width 320 mm (connector)
Sealing Jaw SO-30H - Hand Clamp, Width 320 mm (connector)
These hand-held impulse crimpers are especially designed for welding packaging foils around larger and heavier items (e.g. for overseas packaging). The device is equipped with heated upper and lower jaws and welding time control. Suitable for PE and PP films up to 0.25mm thick.
Interested in this product? Contact us for a custom quote.
Technical parameters
| Parameter | Value |
|---|---|
| product designation | 600 000746 |
| supply voltage | 230V/50Hz |
| installed power input | 0.5 kW |
| jaws open | 50 mm |
| mass | 1,6 + 9 kg |
| wrapping film - material | PE, PVC, PP, POF |
| max. film thickness | 2 x 0.25 mm |
| max. weld length | 300 mm |
| weld width | 3 mm |
| welding time | 0 - 5 sec. |
| foils - design | sleeve, single foil |
| weight of the electrical cabinet | 9,0 kg |
Related products
Sealing Jaw HI-800IP - 800 mm, Including Film Unwinder
Professional tabletop model. Seals up to 800 mm. Thermistor. Built-in film unwinder.
product designation:700 001198
installed power input:0.8 kW
mass:8,5 kg
max. film thickness:0.12 mm
max. weld length:800 mm
weld width:0.8 mm wire
Sealing Jaw FI
Floor-standing model with foot pedal control. Seal 600 mm, width 2/5 mm. For heavy foil sacks up to 0.200 mm. Thermistor.
type:FI-600 - 600 mm wide, rack | FI-605 - 600 mm wide, rack | FI-805 - 800 mm wide, rack
product designation:700 001 197 | 700 001 195 | 700 008 714
supply voltage:220V/50Hz | 220V/50Hz | 220V/50Hz
installed power input:0,8 kW | 1,5 kW | 1,8 kW
mass:28 kg | 30 kg | 34 kg
max. film thickness:0.12 mm | 0.2 mm | 0.2 mm
max. weld length:600 mm | 600 mm | 800 mm
weld width:2 mm | 5 mm | 5 mm
Sealing Jaw HI-600 - Width 600 mm
Professional tabletop model. Extra long seals up to 600/800 mm. Thermistor. Two types of heating strips.
product designation:700 001191
installed power input:0.8 kW
jaw posture:Manual
mass:8,5 kg
max. film thickness:0.15 mm
max. weld length:600 mm
weld width:2 mm
Portable Hand Welder HPW-600
Professional handheld welding tool for manufacturing larger bags and protective film covers.
product designation:700 012831
installed power input:0.8 kW
supply voltage:230-240V
mass:20 kg
max. weld length:600 mm
weld width:3 mm
