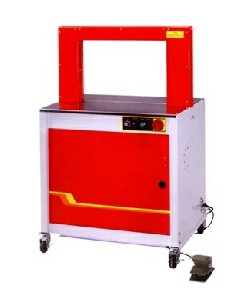

Automatic machine TP-701 ATLANTIS
Automatic machine TP-701 ATLANTIS is suitable for strapping newspapers, books, cartons, textile products, cardboard boxes, etc. Its characteristic features are a high strapping rate (50 cycles/min.!), a high level of automatizing, an easy operation, a minimal outside dimensions and an enormous reliability. This machine is able to work in a manual or an automatic mode. The machine is equipped in standard with an automatic strap feeding and an automatic malfunction solving. The machine works with PP straps of a width of 5 - 6 mm on the coil of an inner diameter of 200mm. The tightening power is adjustable. The height of the work-desk can be easily adjusted.
Options and non-standards:
- modification of arch size
- pneumatic presser
|Looping arch size (mm)||550 x 400|
|Strap width (mm)||5 - 6|
|Strapping rate (straps/min.)||50|
|Electric power source||230V/50Hz|
|Power input||0,7 kW|
