Seals 2 024 00 - 2 035 00
These Seals are used for strapping rounded or irregularly shaped objects, used the steel band of a width from 13 to 32mm and thickness from 0,4 to 2,0mm. The bind is made with the tool RM-E (for a strap width 13-20mm) or RM-E32 (for a strap width 19-32mm). By customer´s request seals could be provided galvanized, painted, rustless or from non-ferrous materials.

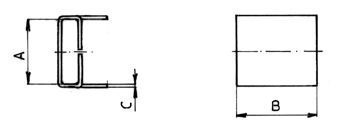

| supply number | 2 024 00 | 2 027 00 | 2 030 00 | 2 033 00 | 2 035 00 | 2 035 00 ULTRA |
|---|---|---|---|---|---|---|
| A | 14,6mm | 17,7mm | 20,3mm | 26mm | 33,2mm | 37mm |
| B | 20mm | 20mm | 22mm | 32mm | 40mm | 45mm |
| C | 0,8mm | 0,8mm | 0,8mm | 0,8mm | 1,0mm | 2,0mm |
| type and size of strap | steel strap 12-13mm | steel strap 15-16mm | steel strap 19-20mm | steel strip of a width 25mm | steel strap of a width 32mm | steel strap of a width 32mm |
| type of strapping machine | RM-E | RM-E | RM-E; RM-E32 | RM-E32 | RM-E32 | RM-E32 |
| carton weight | 2000pcs. = 7,4kg | 1800pcs. = 9,2kg | 1300pcs. = 11,3kg | 1000pcs. = 10,7kg | 1000pcs. = 19,4kg | 300pcs. = 18kg |
| palletste weight | 96cartons = 710kg | 96cartons = 883kg | 96cartons = 1085kg | 60boxes = 642kg | 50boxes = 970kg | 18boxes = 324kg |

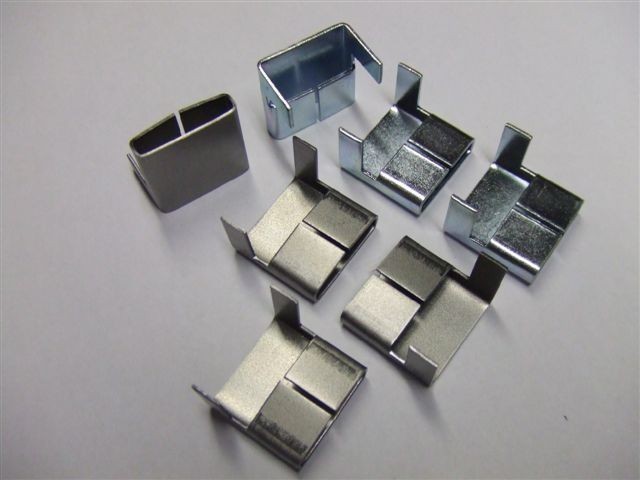

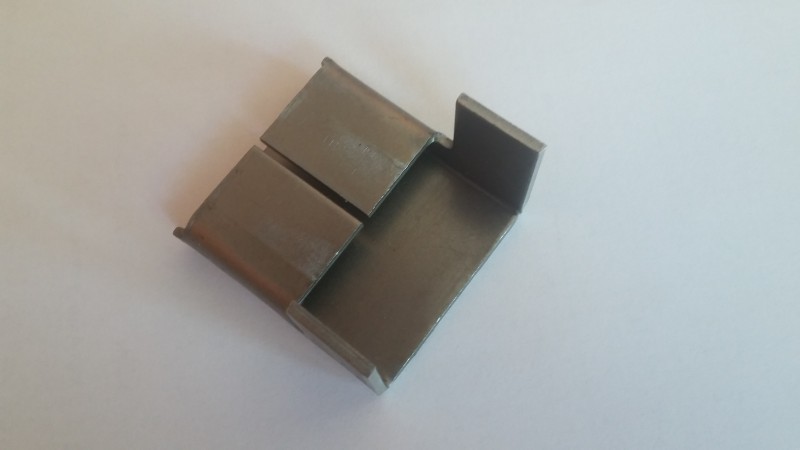

Other photos:
