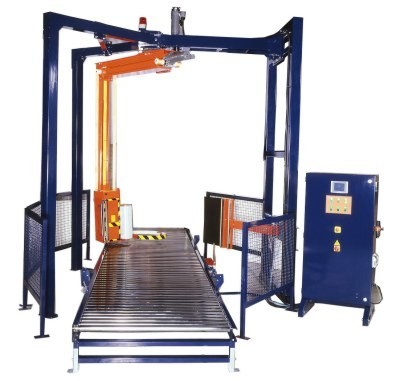

Wrapping machine EXP-201A60
They are designed for wrapping goods stacked on pallets into a stretch foil. This kind of wrapping enables to increase the wrapping rate and decrease energy costs; the wrapped goods are perfectly fixed on pallets, have a nice soft design and are protected against mechanical or weather impacts.
Description:
- intended for medium or high frequency wrapping jobs (up to 30 pallets / hour)
- memory for saving 3 wrapping programs One Touch
- adjustable power stretch system - 230% or 300% (1 meter foil can be pre-stretched to 4 meters)
- programming and communication with control unit by mini-display and buttons
- automatic foil cut after finishing wrapping cycle (claw punch)
- built-in service diagnostics
- precise home position (the arm always stops at the same position)
- pallet height seeking by photo sensor
- effective and stable soft wrapping device (perfect wrapping performance on the package angle)
- fluent regulation of wrapping tension, speed of turntable and elevator unit
- slow start and stop (soft start)
- numbers of foil turns of top / bottom wrapping are adjustable
- metal / embossing pre-stretch roller (no any maintenance needed)
- a security bar helps to protect operators´ foot from any possible injury
- intended for fully-automatic workshops with a high wrapping capacity (up to 45 pallet / hour)
- programming and communication with control unit by touch screen
- automatic foil fixing to a pallet
- automatic foil cut after finishing wrapping cycle (compressed air scissors)
Options and non-standards:
- infeed / outfeed powered conveyor
- wrapping diameter 2,0 m or 2,35 m
- atypical wrapping height 2,5 m
- wrap arm speed 0 - 20 RPM
| Type | EXP-201A60 |
|---|---|
| Wrapping material | machine stretch foil |
| Machine height | 3830 mm |
| Max. wrapping height | 2000 mm |
| Max. wrapping diameter | 1800 mm |
| Wrapping speed | 0 - 15 RPM |
| Foil width | 500 mm |
| Max. loading weight | 1800 kg |
| Power input | 1,5 kW |
| Voltage | 230V / 50Hz |
| Compressed air | 5 - 6 bar |
| Conveyor width | 1300 mm |
