Seals 2 070 00 - 2 085 00
These seals are used for strapping rounded or irregularly shaped objects, used the steel band of a width 19, 20, 25, and 32mm. Band join is made by manual mechanical or manual pneumatic strapping machines. By customer´s request the seals could be delivered with a bright surface, zinc plated or painted. Seal thickness by customer´s demands. Standard thickness is 0,80mm.
| supply number | 2 070 00 | 2 071 00 | 2 073 00 | 2 074 00 | 2 075 00 | 2 075 00 ULTRA | 2 082 00 | 2 085 00 | 2 085 00 ULTRA |
|---|---|---|---|---|---|---|---|---|---|
| A | 20,8mm | 20,8mm | 27,4mm | 27,4mm | 33,6mm | 33,6mm | 20,8mm | 33,6mm | 33,2mm |
| B | 40mm | 45mm | 45mm | 57mm | 45mm | 45mm | 57mm | 57mm | 57mm |
| C | 0,8-0,9mm | 0,8-0,9mm | 0,8-0,9mm | 0,8-0,9mm | 0,8-0,9mm | 1,0mm | 0,8-0,9mm | 0,8-0,9mm | 1,0mm |
| type and size of strap | steel strap 19-20mm | steel strap 19-20mm | steel strap 25mm | steel strap 25mm | steel strap 32mm | steel strap 32mm | steel strap 19-20mm | steel strap 32mm | steel strap 32mm |
| type of strapping machine - manual | NP1+UK1 | NP1+UK1 | NP2+UK2 | NP2+UK2 | NP1+UK1 | NP2+UK2 | NP2+UK2 | ||
| type of strapping machine - pneumatic | FP-19 (S) | FP-19 (S) | FP-25S | FP-25S | FP-32S / CR26 | FP-32S / CR26 | FP-19 (S) | FP-32S / CR26 | FP-32S / CR26 |
| carton weight | 700pcs. = 9kg | 700pcs. = 9,8kg | 450pcs. = 8,35kg | 300pcs. = 7kg | 300pcs. = 6,85kg | 500pcs. = 13,2kg | 500pcs. = 9,15kg | 250pcs. = 7,15kg | 250pcs. = 8,8kg |
| pallette weight | 96cartons = 864kg | 96pcs. = 941kg | 96cart. = 801kg | 96cart. = 672kg | 96cart. = 657kg | 72cart. = 950kg | 96cart. = 878kg | 96cart. = 686kg | 96cart. = 840kg |
| steel box weight | 20000pcs = 260kg | 20000pcs. = 280kg | 20000pcs. = 373kg | 20000pcs. = 453kg | 15000pcs. = 393kg | 12000pcs = 317kg | 20000pcs. = 368kg | 12000pcs. = 394kg | 12000pcs. = 420kg |

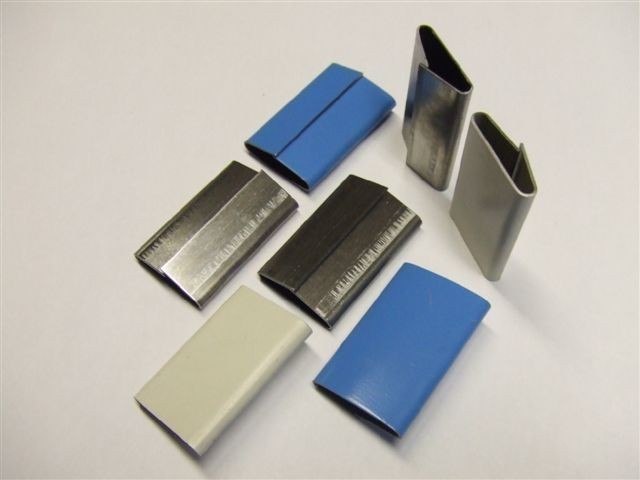

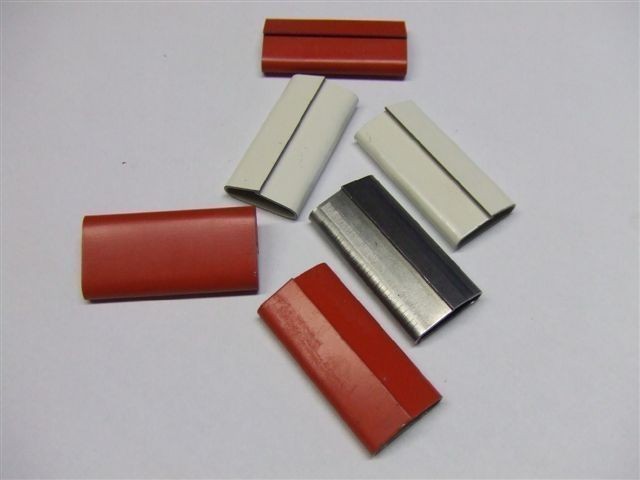

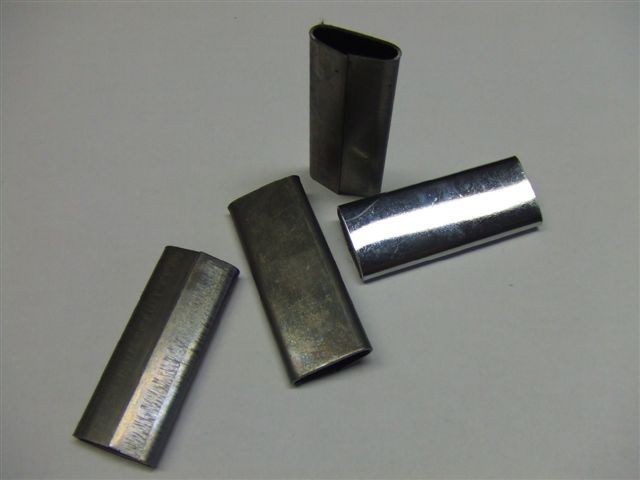

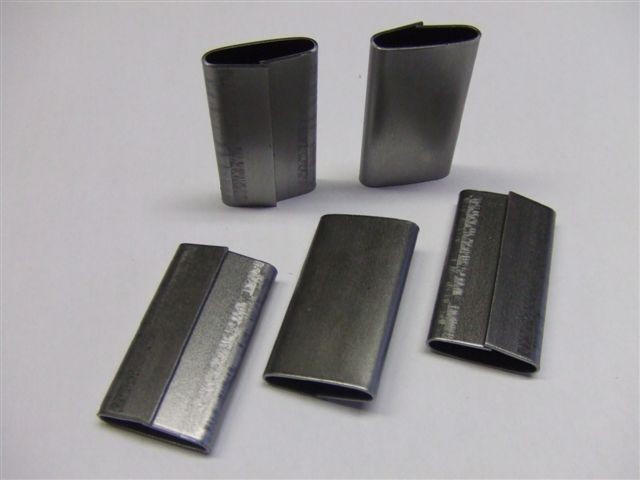

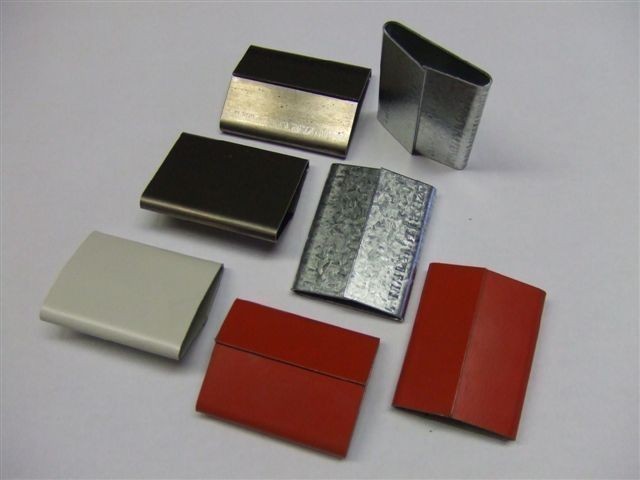

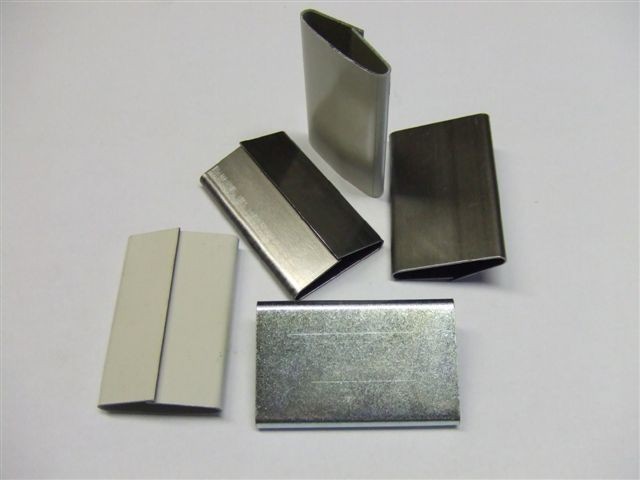

Other photos:
