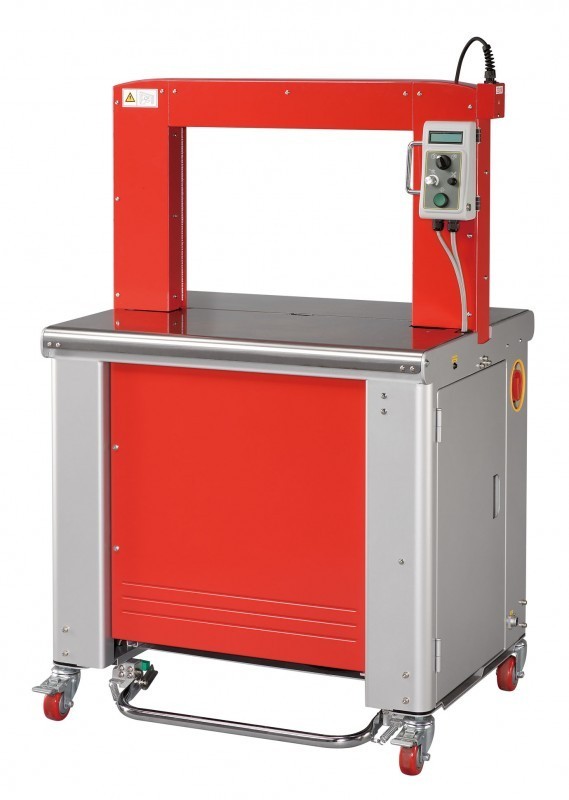

TP-702 MERCURY - automatic PP strapping machine

This strapping machine is suitable for strapping newspapers, cartons, textile products, etc. with PP strap. Among main advantages of this strapping machine belong: high speed of strapping (65 cycles/min.!), high degree of automatization, easy operation, min. outer dimensions and high reliability. The machine is able to work in semi-automatic or automatic working mode and is equipped with automatic strap feeding into the machine, with automatic loop-ejection of unwanted or wrong strap, with automatic strap chute opening in case of malfunction. The machine works with strap of the width of 5 – 6 mm with inner diameter of coil of 200 mm. Tightening power is fluently and exactly adjustable, height of work desk is adjustable. Error messages are displayed on LCD panel.

Ordering code 700 009562
Voltage 230V/50Hz
Power input 0,7 kW
Strap - material polypropylene
Strap width 5,5 (5 - 6) mm, nebo 9 mm, nebo 12 mm
Strap thickness 0,35 - 0,5 mm
Weight 160 kg
Outer diameter of roll 200 mm
Packing rate 65 (straps/min.)
Arch width 550 mm
Arch height 400 mm
