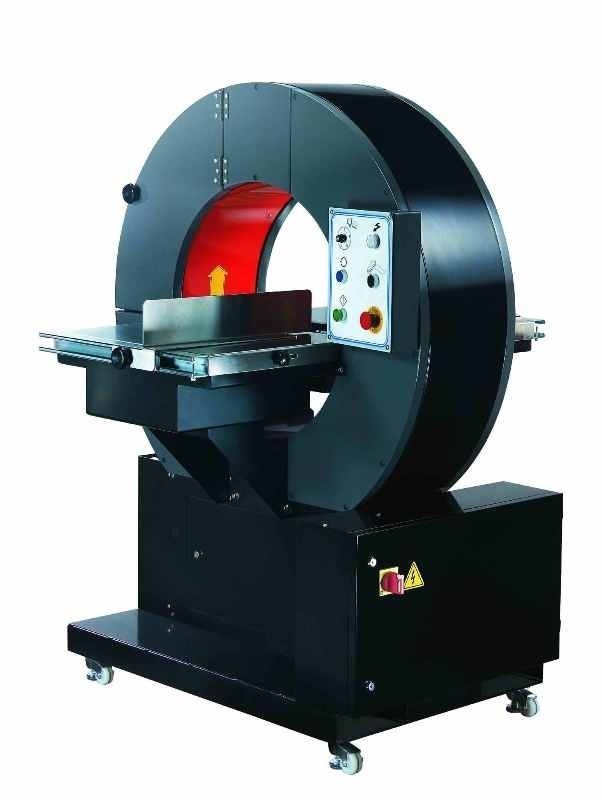

EXR-301 - semi automatic horizontal wrapping machine

Semi-automatic horizontal wrapping machine is designed for long objects wrapping, e.g. carpets, textiles, tubes, battens and other long profiles. Application is convenient also in case of impossible usage of another wrapping machine, e.g. for too small perimeter of wrapping good or if more careful fixation is necessary. The machine is suitable for medium frequency wrapping jobs. Stainless input and output work tables are included. Among main advantages belong easy operation – semi-automatic working mode (operator only cuts a film), low operating costs and low demands on machine maintenance, a robust construction, rotation of the moving wheel is controlled by frequency converter (slow start and stop, home position and fluent regulation of rotation speed), 2 working modes (A – adjustable number of wind from 3 to 11, B – continual wrapping), adjustable wrapping speed (max 100 winds/min), adjustable film tightening and unique tightening system with fractional roller.

Ordering code 700 008953
Voltage 230V/50Hz
Weight 290 kg
Length 1246 mm
Width 1084 mm
Height 1512 mm
Outer diameter of roll 76 mm
Foil - material LDPE stretch
Max. foil width 76, 100, 125 mm
Max. foil thickness 19 - 35 my
Conveyor width 560 mm
Conveyor height 910 mm
Min. size of wrapped object 100 x 50 mm average 100 mm
Max. size of wrapped object 305 x 305 mm, 508 x 178 mm, 330 mm
Recommended length of wrapped object > 500 mm
Max. foil diameter 178 mm
Turns of rotating unit max. 100 turns/min.
