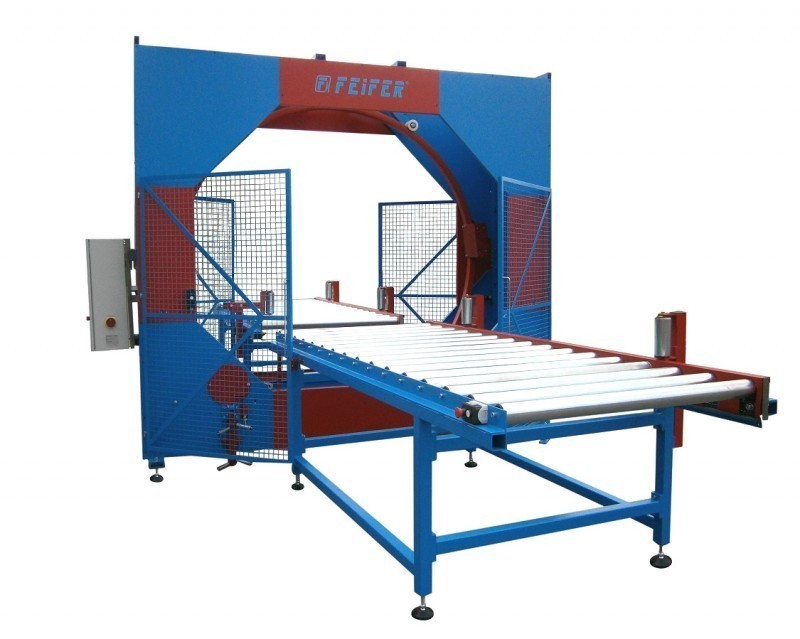

EXP-H2600 RONDO - horizontal stretch wrapping machine

« back to product list

EXP-H2600 RONDO - horizontal stretch wrapping machine

Horizontal wrapping machine EXP-H2600 RONDO is intended for wrapping long objects e.g. doors, windows, boards, etc. into stretch film. It is suitable for medium frequency wrapping jobs. Delivery includes input and output driven conveyors.

Advantages of the machine:

- intended for wrapping long objects e.g. doors, windows, boards, etc. into stretch film
- delivery includes input and output conveyors
- easy machine operation – automatic film cutting
- rotation of moving wheel is controlled by frequency converter (slow start and stop, home position and fluent regulation of rotation speed)
- suitable for medium frequency wrapping jobs
- robust construction enables usage of standard width of film (500 mm – low wrapping material costs)
- easy maintenance
- The machine is intended for dry and low dusty environment



Ordering code 700 008459
Voltage 400V/50Hz
Power input 6 kW
Foil - material LDPE stretch
Max. foil width 500 mm
Max. foil thickness 30 My
Diametr of moving wheel 2600 mm
Maximal speed of rotating unit 16 turns/ min.
Conveyor speed 4 m/min.
Min. size of wrapped object 60 x 1000 mm
Max. size of wrapped object 1250 x 1000 mm
Recommended length of wrapped object 2500 - 13000mm
