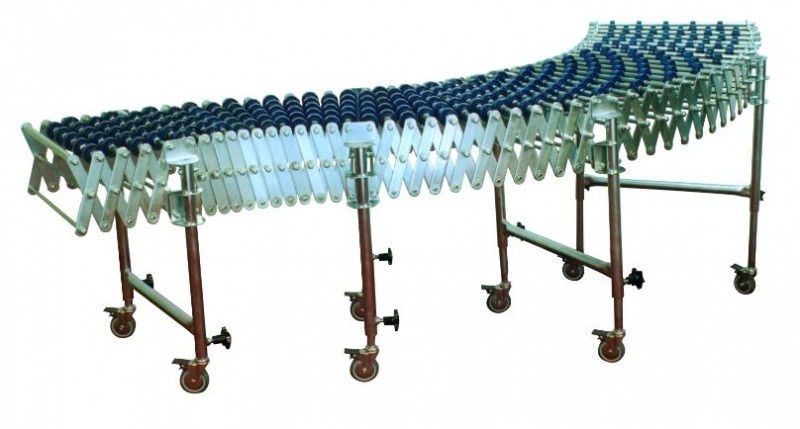

DH - extensible conveyor, 3 spans, plastic skate wheels, track 1,58 - 5,80 m

« back to product list

This conveyor is suitable for building straight and curved conveyor routes, both gradient and plain. It is mainly used for transporting cartons and similar goods. Height of conveyors legs is adjustable, which enables to adjust quickly slope of the conveyor. The construction of the conveyor enables a safe guidance of transported goods in curves (security side guiding bar is not necessary). Width of the track is 500 or 800 mm, total width of the conveyor is 620 or 920 mm. Height of the conveyor is adjustable from 655 to 1000 mm. The conveyor can form curves of 180°. There are placed 5 skate wheels or 2 rollers (plastic or steel) on one axis. The conveyor is movable (equipped with wheels with brakes). Total length of the track is according a type 1,70 - 4,24 m or 1,58 – 5,80 or 1,98 – 7,36m. Conveyors can be joined and so it is possible to create even longer routes.

Ordering code	600 000 107	600 000 256	600 000 111	600 000 248	600 000 257	600 000 108	600 000 246	600 000 233	600 000 255
Track version	plastic skate wheels	steel. rollers	plastic skate wheels	plast. rollers	steel. rollers	plast. rollers	steel. rollers	plastic skate wheels	plast. rollers
Total conveyor width	620 mm	620 mm	620 mm	620 mm	620 mm	620 mm	620 mm	620 mm	620 mm
Roller diameter	50 mm	50 mm	50 mm	50 mm	50 mm	50 mm	50 mm	50 mm	50 mm
Max. loading	60 kg/m	60 kg/m	60 kg/m	60 kg/m	60 kg/m	60 kg/m	60 kg/m	60 kg/m	60 kg/m
Conveyor height	665 - 1000 mm	665 - 1000 mm	665 - 1000 mm	665 - 1000 mm	665 - 1000 mm	665 - 1000 mm	665 - 1000 mm	665 - 1000 mm	665 - 1000 mm
Conveyor length	1580 - 5800 mm	1700 - 4240 mm	1160 - 4240 mm	1700 - 4240 mm	2310 - 5800 mm	2310 - 5800 mm	2920 - 7360 mm	1980 - 7360 mm	2920 - 7360 mm
