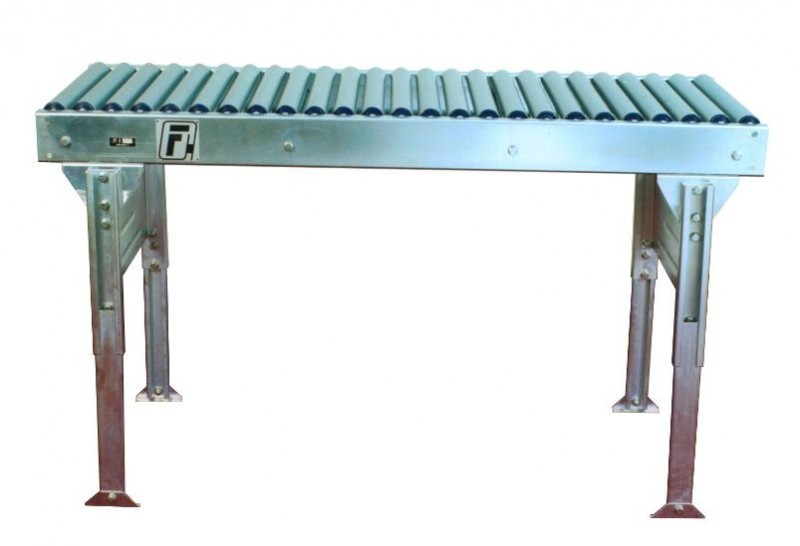

DP-2 straight-lined conveyor, lenght 2 m, equipped with steel rollers

« back to product list

This conveyor is suitable for building straight and curved conveyor routes, both gradient and plain and is especially intended for transporting cartons but as well as other goods. Surface treatment: zinc-chrome or painted. The body of the conveyor is in standard modificaton produced from metal plate or foursquare tube. This model is equipped with metal zinc rollers and total length of the route is 2 m.

Ordering code	600 000 115	600 000 113	600 000 117	600 000 114	600 000 104	600 000 103
Track version	plast. rollers	plast. rollers	steel. rollers	steel. rollers	plastic skate wheels	plastic skate wheels
Total conveyor width	620 mm	620 mm	620 mm	620 mm	620 mm	620 mm
Roller diameter	50 mm	50 mm	50 mm	50 mm	50 mm	50 mm
Max. loading	80 kg/m	100 kg/m	90 kg/m	110 kg/m	80 kg/m	100 kg/m
Conveyor height	580 - 920 mm	580 - 920 mm	580 - 920 mm	580 - 920 mm	580 - 920 mm	580 - 920 mm
Conveyor length	2000 mm	1500 mm	2000 mm	1500 mm	2000 mm	1500 mm
