Door hinge insert 3 107 00 3D

- for rebated and unrebated doors

- for steel frames

- Standard in zinc plated design.

   By customer´s request the hinge insets could be delivered in the STAINLESS STEEL V4A variant (AISI 316).

- for heavy-duty hinges SIMONSWERK VARIANT VN and VARIANT VXG

- continuous 3D adjustment (side +/- 3,0 mm, height +/- 3,0 mm, compression +/- 3,0 mm)

- Load capacity up to 120 kg

- packed in a carton of 50 pcs.



width 32mm
length 185mm
material thickness   2mm
weight 0,52kg

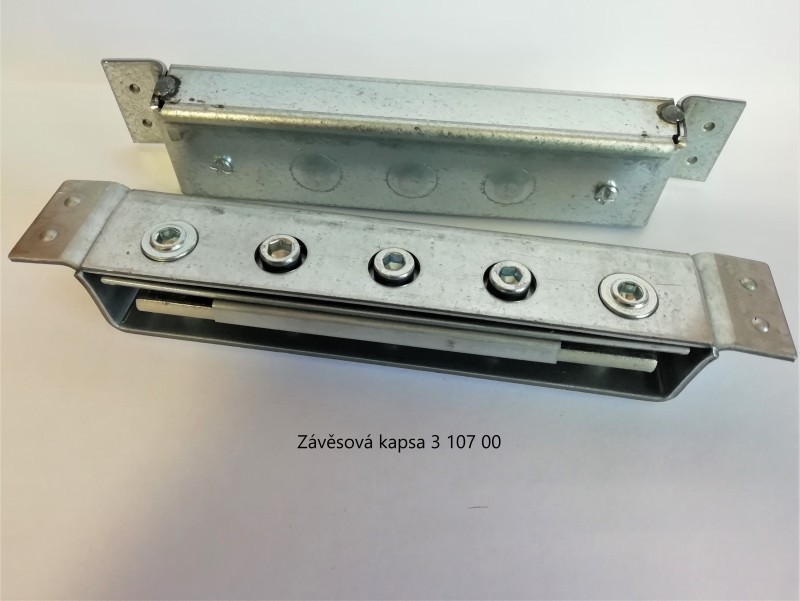

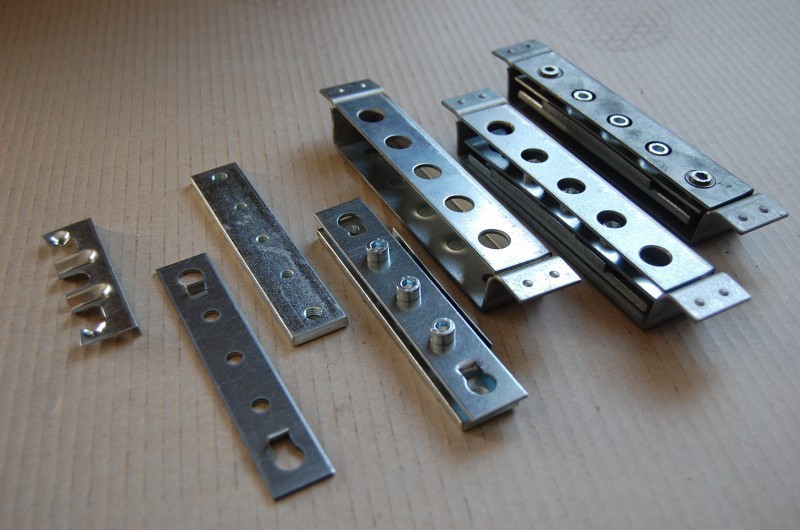

Other photos:

Door hinge insert 3 107 00 3D Door hinge insert 3 107 00 3D
