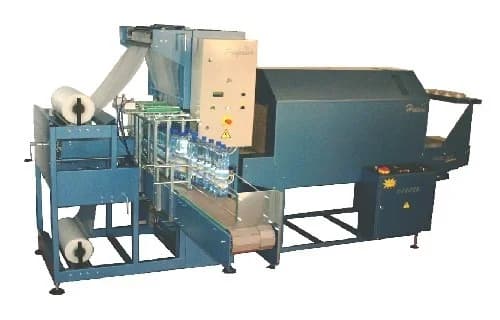

Automatic Film Packaging Machines SL - PROFESSOR and Shrink Tunnels HT - HOLITERM
Automatic Film Packaging Machines SL - PROFESSOR and Shrink Tunnels HT - HOLITERM
Automatic packaging line for books, magazines, cartons, cables and textiles in shrink film. Modular design. Electronic control, maintenance-free sealing jaw, adjustable conveyor speed. Shrink tunnels HT-Holiterm standalone or with semi-automatic machines.
Interested in this product? Contact us for a custom quote.
Technical parameters
| type | SL-70AD | SL-70PET | HT-5023 | HT-5040 | HT-6823 | HT-6840 | |
|---|---|---|---|---|---|---|---|
| length (mm) | 1450 | 1600 | 2460 | 2460 | 2460 | 2460 | — |
| width (mm) | 1150 | 2150 | 1180 | 1180 | 1405 | 1405 | — |
| height (mm) | 2250 | 2000 | 1710 | 1710 | 1710 | 1710 | — |
| Machine weight (kg) | 180 | 300 | 350 | 350 | 390 | 390 | — |
| foils - material | PE, PVC, PP | PE, PVC, PP | PE, PVC, PP | PE, PVC, PP | PE, PVC, PP | PE, PVC, PP | — |
| type of foil | 2 plain | 2 plain | - | - | - | - | - |
| max. film thickness (My) | 90 | 90 | 90 | 90 | 90 | 90 | — |
| max. width of packed item (mm) | 650 | 650 | 400 | 400 | 650 | 650 | — |
| max. height of packed item (mm) | 400 | 400 | 230 | 400 | 230 | 400 | — |
| supply voltage | 400 V / 50 Hz | 400 V / 50 Hz | 400 V / 50 Hz | 400 V / 50 Hz | 400 V / 50 Hz | — | — |
| Installed power (kW) | 2,5 | 1,5 | 13 | 13 | 13 | 17 | — |
| air pressure | - | 4 - 6.5 bar | - | - | - | - | - |
| max. machine capacity (cycles/min.) | 16 | 10 - 13 | - | - | - | - | — |
Rozměry a varianty
| typ | délka (mm) | šířka (mm) | výška (mm) | hmotnost stroje (kg) | fólie - materiál | typ fólie | max. tloušťka fólie (My) | max. šířka baleného předmětu (mm) | max. výška baleného předmětu (mm) | napájecí napětí | instalovaný příkon (kW) | tlak vzduchu | max. kapacita stroje (cykly/min.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SL-70AD | 1450 | 1150 | 2250 | 180 | PE, PVC, PP | 2 plain | 90 | 650 | 400 | 400 V / 50 Hz | 2,5 | - | 16 |
| SL-70PET | 1600 | 2150 | 2000 | 300 | PE, PVC, PP | 2 plain | 90 | 650 | 400 | 400 V / 50 Hz | 1,5 | 4 - 6,5 bar | 10 - 13 |
| HT-5023 | 2460 | 1180 | 1710 | 350 | PE, PVC, PP | - | 90 | 400 | 230 | 400 V / 50 Hz | 13 | - | - |
| HT-5040 | 2460 | 1180 | 1710 | 350 | PE, PVC, PP | - | 90 | 400 | 400 | 400 V / 50 Hz | 13 | - | - |
| HT-6823 | 2460 | 1405 | 1710 | 390 | PE, PVC, PP | - | 90 | 650 | 230 | 400 V / 50 Hz | 13 | - | - |
| HT-6840 | 2460 | 1405 | 1710 | 390 | PE, PVC, PP | - | 90 | 650 | 400 | 400 V / 50 Hz | 17 | - | - |
Related products

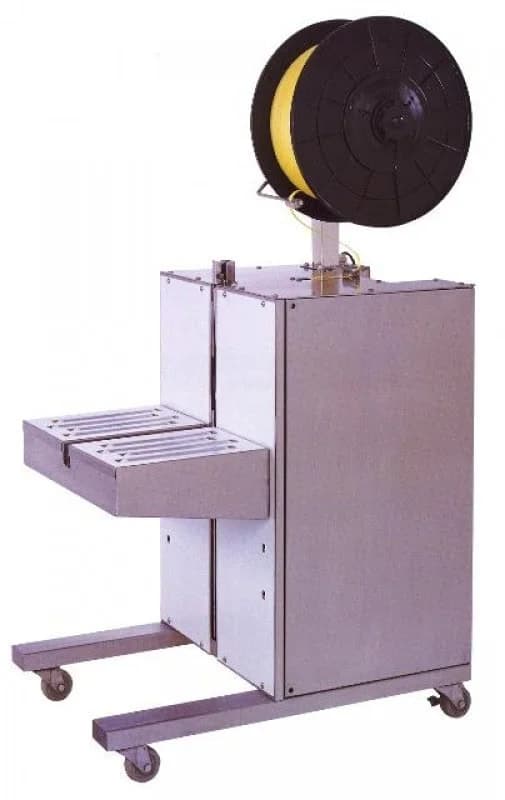

Semi-automatic strapping machine TP-205VS - for PP strap - side version (stainless steel)
Stainless steel version. For strapping goods where contamination is a risk. Mechanism positioned laterally.
product designation:700 008286
supply voltage:230V/50Hz
installed power input:0,35 kW
binding tape - material:polypropylene
binding tape width:5.5 - 15 mm
mass:80 kg
machine length:895 mm
machine width:570 mm
machine height:750 mm
inner diameter of the coil:200 mm
max. power:14 (hours/min.)
max. tightening force:550 N

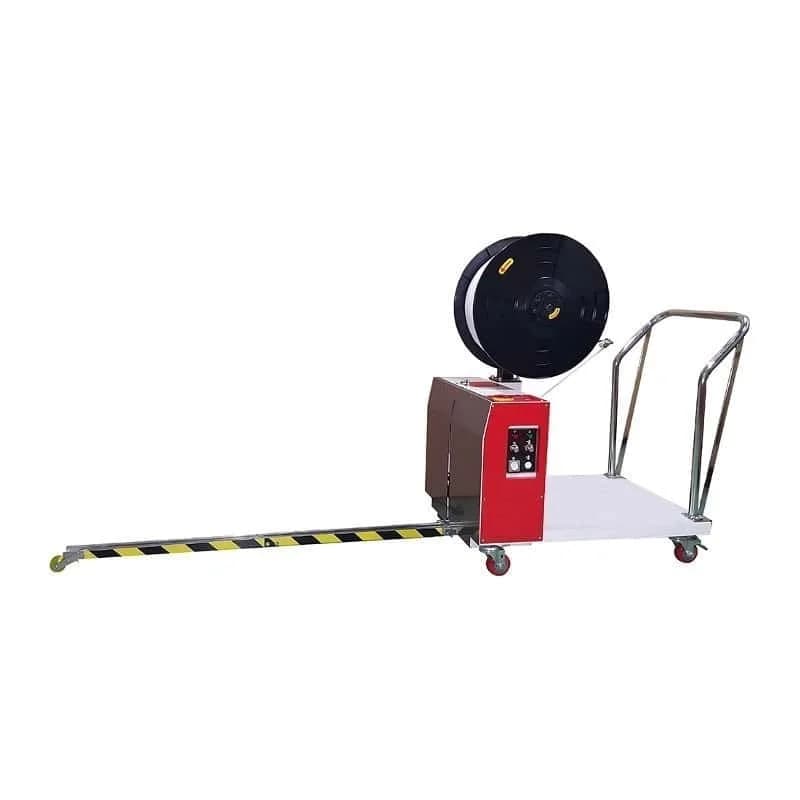

Semi-automatic strapping machine TP-502 MV
For vertical pallet strapping, objects from 380mm height. Mobile, electronic tensioning force regulation.
product designation:700 012220
supply voltage:230V/50Hz
installed power input:0.4 kW
binding tape - material:polypropylene
binding tape width:9 - 15 mm
mass:93 kg
cavity diameter:200 mm
max. power:14 (hours/min.)
adjustable tightening force:80 - 700 N

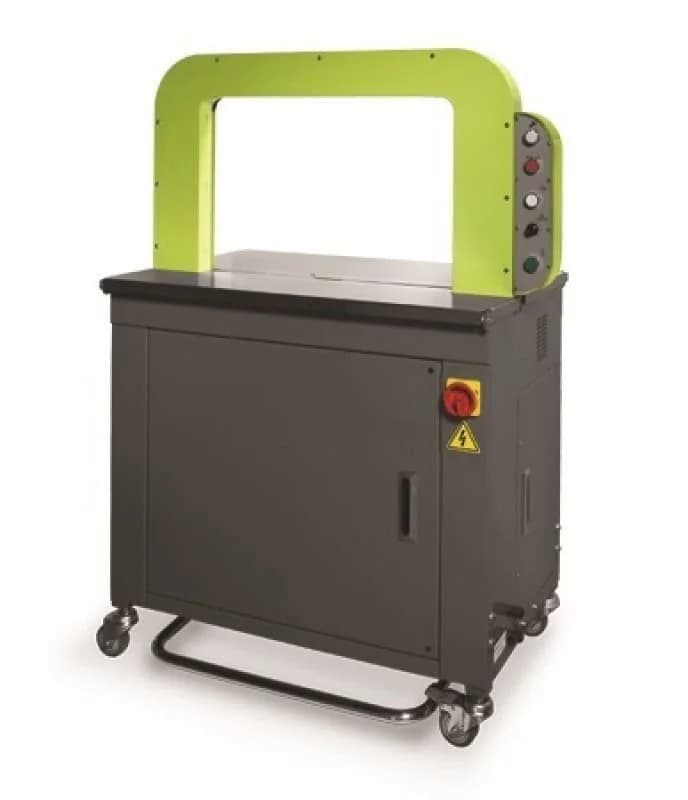

Automatic strapping machine TP-125 SWIFT - for PP strap
High capacity (50 straps/min). Automatic strap threading, ejection of faulty straps. Minimal dimensions.
product designation:700 010487
supply voltage:230V/50Hz
installed power input:0.5 kW
binding tape - material:polypropylene
binding tape width:5,5 (5-6) mm
binding tape thickness:0,35 - 0,5 mm
mass:176 kg
outer diameter of the winding cavity:200 mm
max. power:50 (times/min.)
width of the border:600 mm
height of the obvader:400 mm

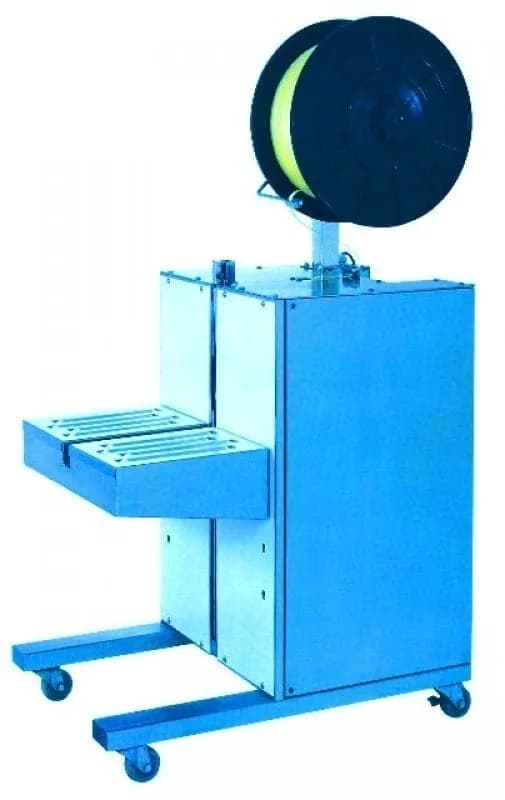

Semi-automatic strapping machine TP-205V - for PP strap - side version
