Products

632 products

Clip 2 001 00 - 2 005 00

Clip 2 001 00 - 2 005 00

Steel clip - used for manual strapping of cartons, loose products and palletised goods with polypropylene (PP) strapping of widths 9, 10, 12, 15, 16 and 19 mm. The joint is made with a manual strapping tool.

Clip 2 006 00 - 2 007 00

Clip 2 006 00 - 2 007 00

High-strength steel clip - used for manual strapping of cartons, loose products and palletised goods with PET or PP strapping of widths 12, 15 and 16 mm.

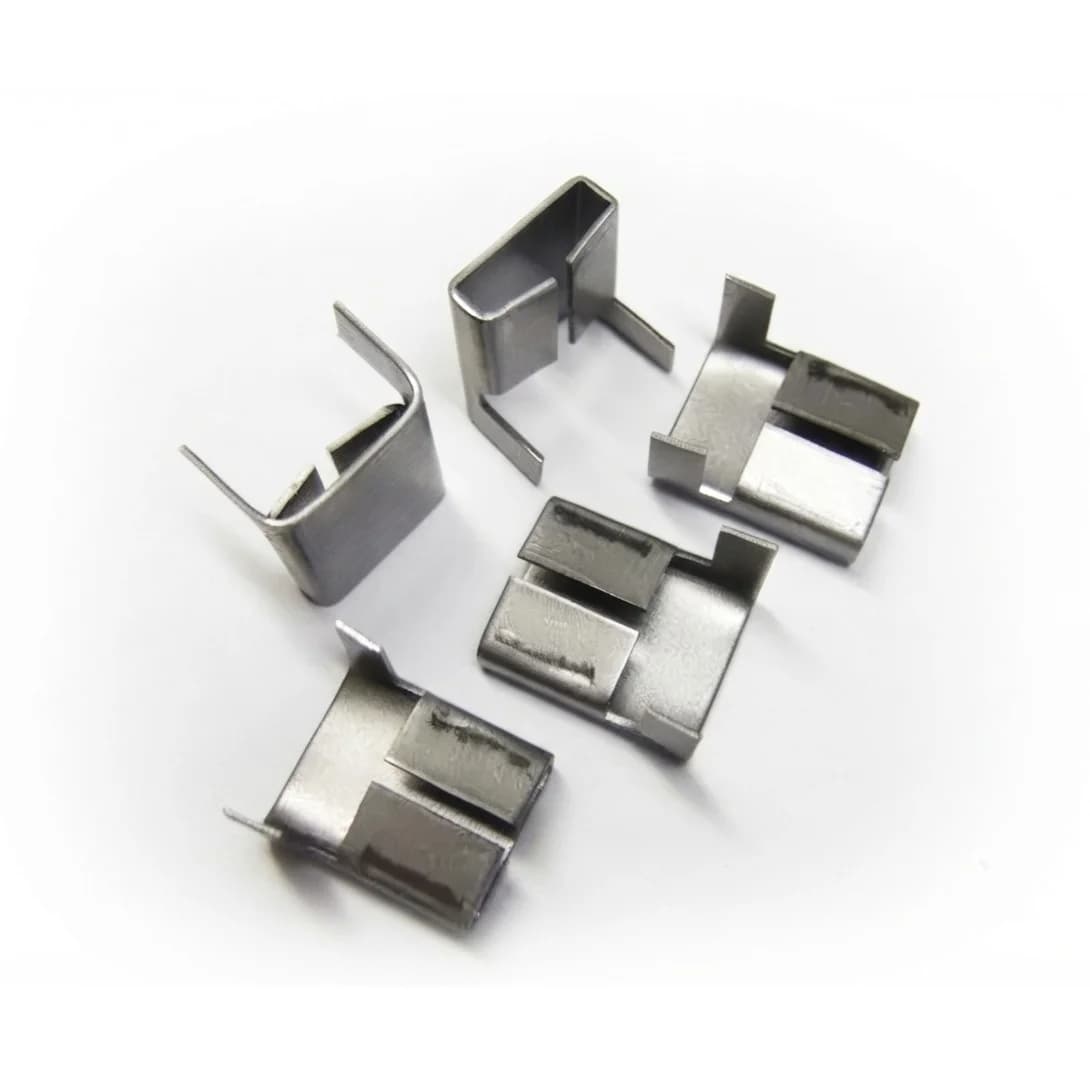

Clip 2 024 00 - 2 035 00

Clip 2 024 00 - 2 035 00

Steel clip - used for manual strapping of shaped or round objects with steel strapping of widths from 13 to 32 mm and thickness from 0.4 to 2.0 mm.

Clip 2 051 00 - 2 052 00

Clip 2 051 00 - 2 052 00

Steel clip - for manual strapping of cartons and lighter palletised goods with PP strapping of widths 9-10 mm and 12 mm.

Clip 2 062 00 - 2 068 00

Clip 2 062 00 - 2 068 00

Steel clip - for manual strapping of shaped or round objects with steel strapping of widths 10, 13, 16 and 19 mm.

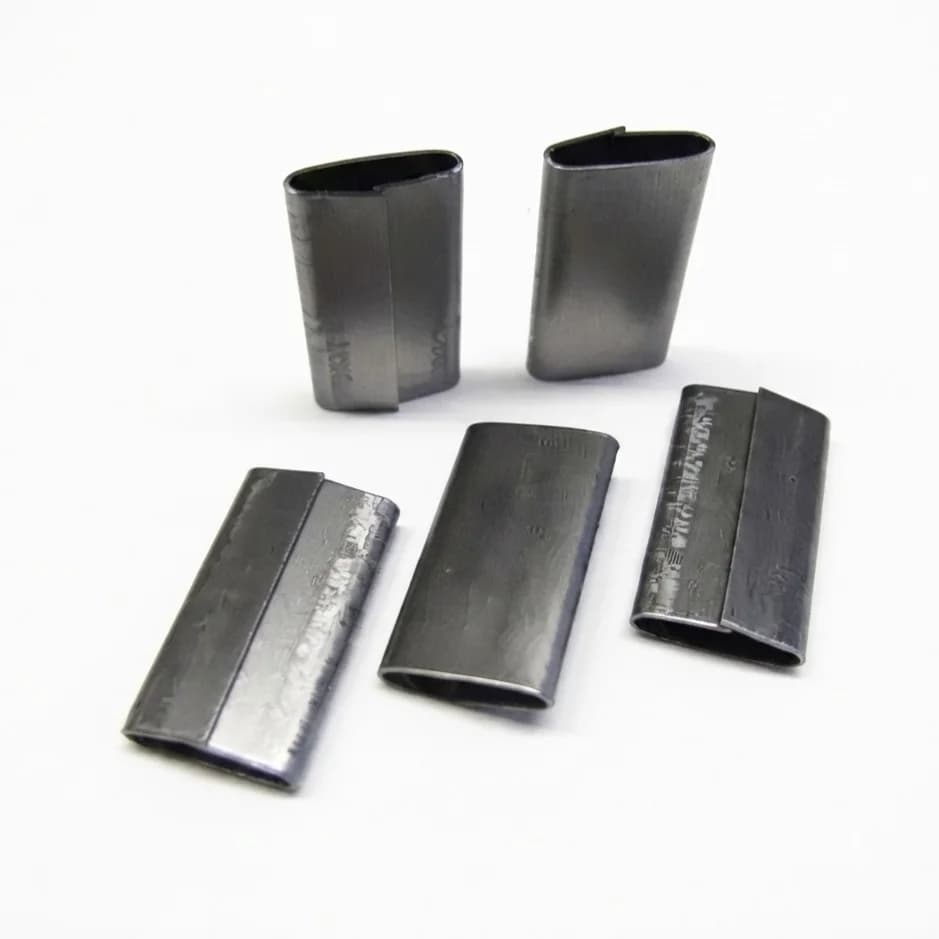

Clip 2 070 00 - 2 085 00

Clip 2 070 00 - 2 085 00

Steel clip - for manual strapping of shaped or round objects with steel strapping of widths 19, 20, 25 and 32 mm.

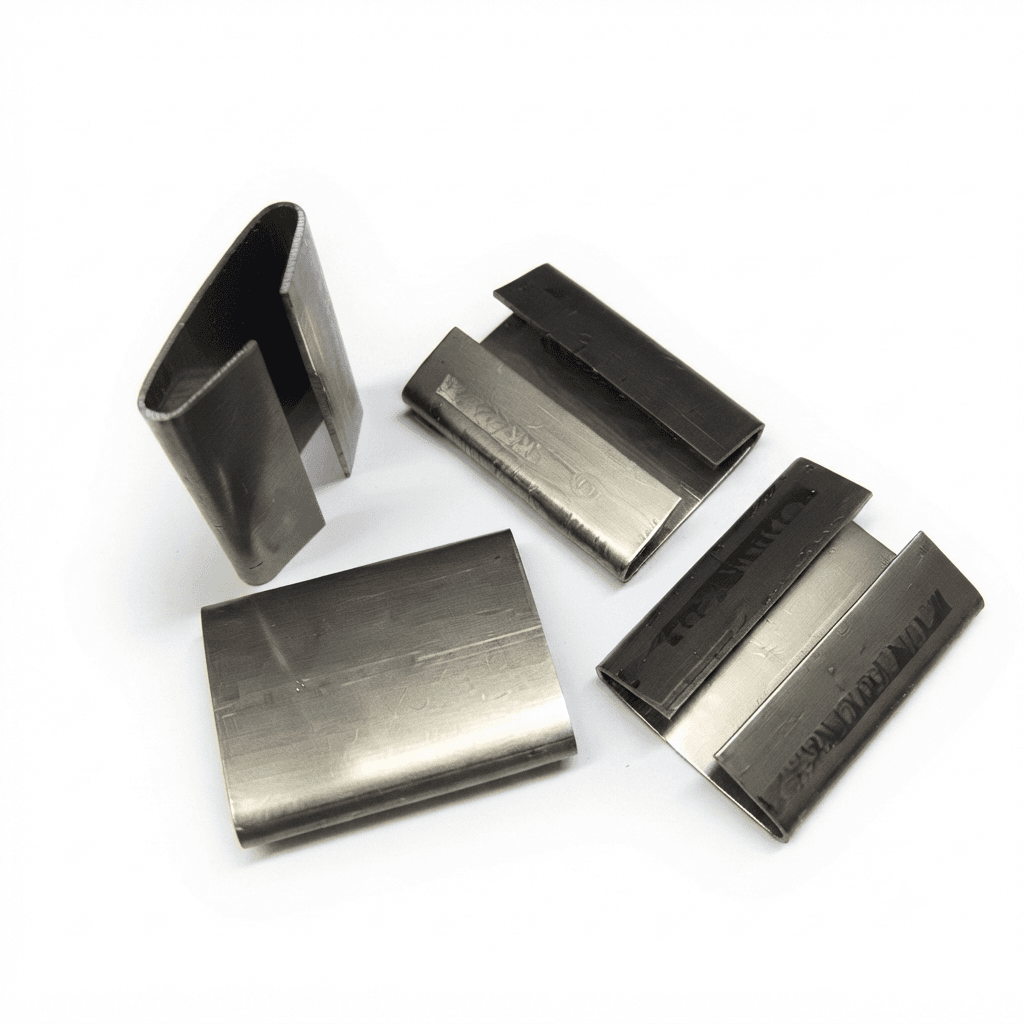

Clip 2 092 00

Clip 2 092 00

Steel clip - for manual strapping of shaped or round objects with steel strapping of width 32 mm.

order number:2 092 00
width of buckle:36mm
length of buckle:48mm
material thickness:1.0mm
type and size of tape:oc. tape 32mm
type of strapping machine - manual:NP2+UK2
type of strapping machine - pneumatic:FP-32S / CR 23
packing weight carton:300pcs = 7,82kg
packing weight pallet:96kart. = 751kg
MARS crate packing weight:15000pcs = 397kg
Clip 2 121 00 - 2 126 00

Clip 2 121 00 - 2 126 00

Binding clips type 2 121 00 - 2 126 00 are used for automatic strapping of bundles with steel strapping of widths 16, 19, 20, 25 and 32 mm. Clips are stacked in blocks of 50 pieces.

Wire seals — galvanised

Wire seals — galvanised

For strapping with PES, PET or PP strap width 9–40 mm. Very strong and releasable joint. Reusable.

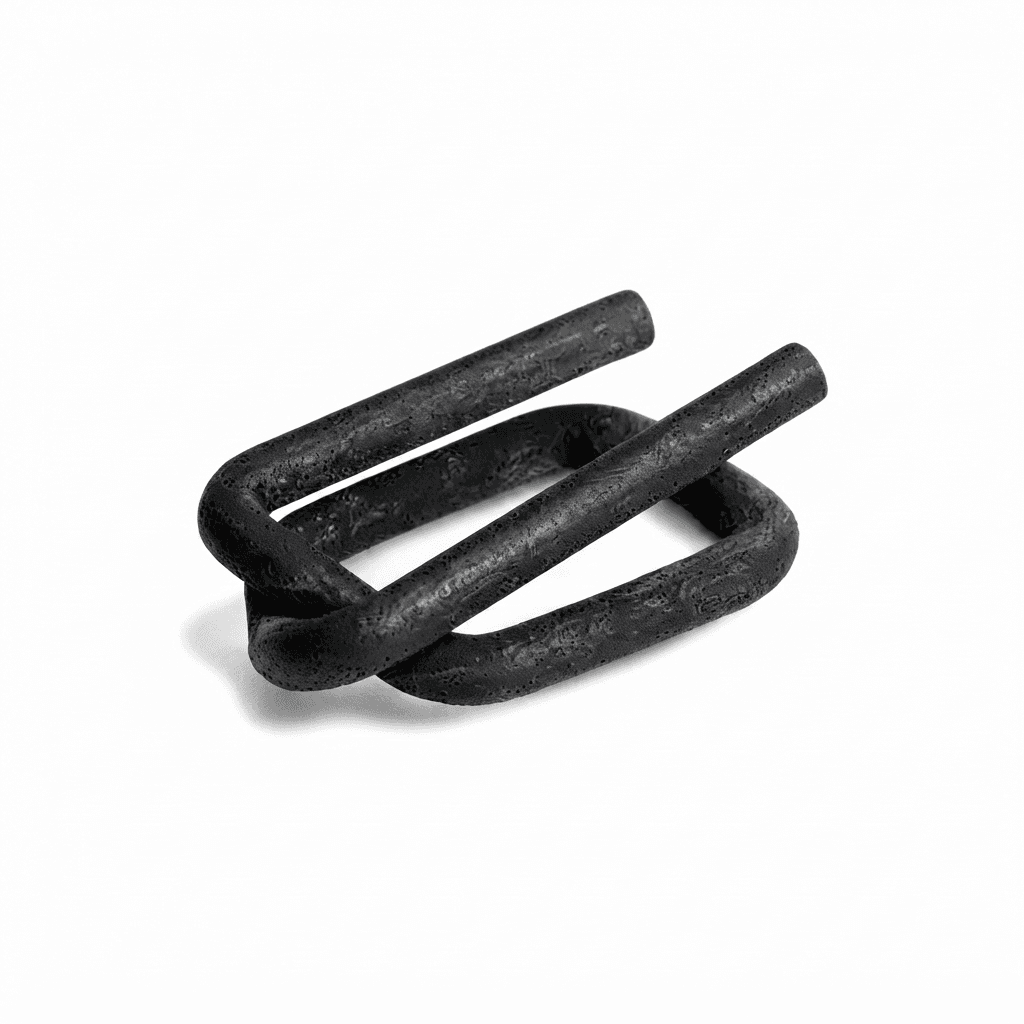

Wire seals — phosphated

Wire seals — phosphated

For strapping with PES strap width 9–40 mm. Strong and releasable joint. Phosphated — higher strength, more resistant to slippage.

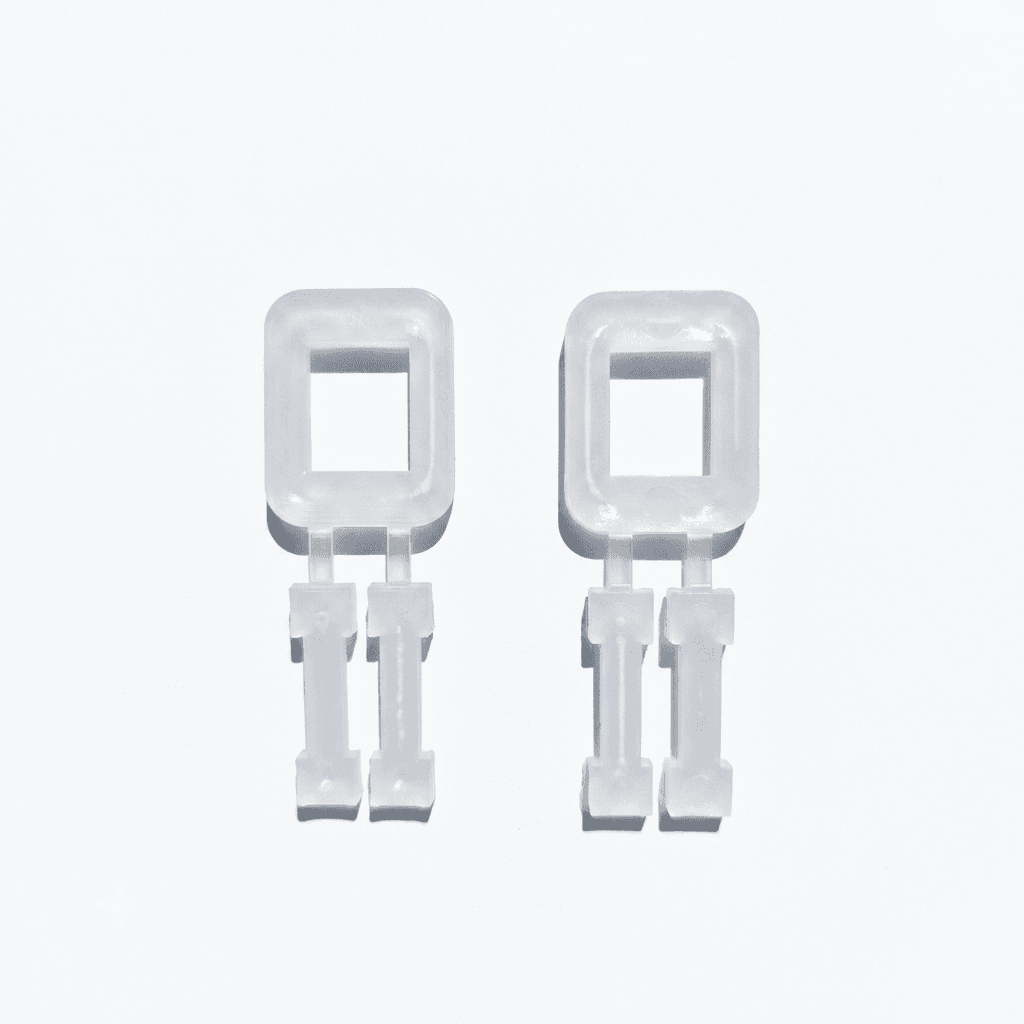

Plastic seals PP-12 and PP-16

Plastic seals PP-12 and PP-16

For PP straps. Self-locking, safe, recyclable. For use where a metal seal cannot be used.

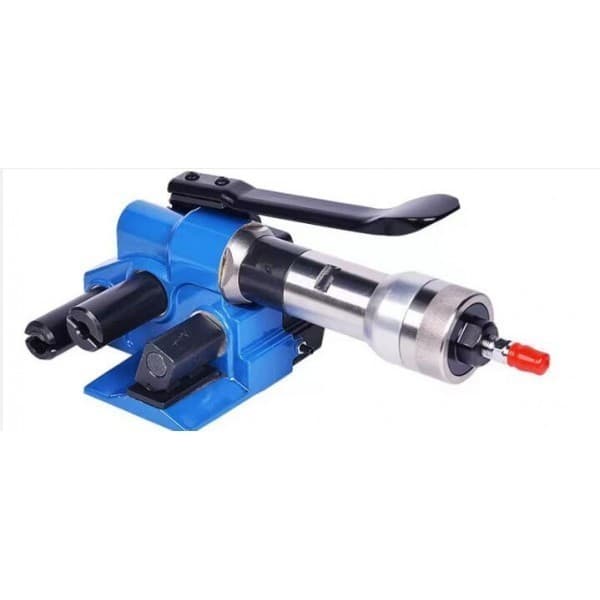

CPT-40 Pneumatic Tensioner for 19–40 mm Belts

CPT-40 Pneumatic Tensioner for 19–40 mm Belts

The CPT-40 pneumatic tensioner is designed for tensioning polyester fabric or composite strapping with a width of 19–40 mm. It is primarily intended for use in operations with higher strapping...

description:tensioner
tape width [mm]:19 - 40
weight [kg]:3,7
Conveyor Belt Clips 1 011 00 - 1 013 00

Conveyor Belt Clips 1 011 00 - 1 013 00

Conveyor belt clips ensure a quick and secure connection of rubber belts used to transport bulk materials. 3-hole clips are used for rubber belts 800 mm wide, and 5-hole clips are used for belts 1200...

Filter hose clamp 1 301 00

Filter hose clamp 1 301 00

This product has a wide range of applications in the installation of dust collection systems in steel mills and other dusty environments. It can also be used in the installation of ventilation...

order number:1 301 00
clamping diameter:175 mm and more (as required)
Vertical anchor 3 015 00 - 3 017 00

Vertical anchor 3 015 00 - 3 017 00

Vertical anchors serve as connecting elements in the construction of partition load-bearing walls with an insulation cavity or an internal insulation layer. They minimize heat transfer and thus...

Window anchor 3 010 00 - 3 012 00

Window anchor 3 010 00 - 3 012 00

Window anchors are used in construction to secure window frames to masonry and to anchor trim strips for cladding.

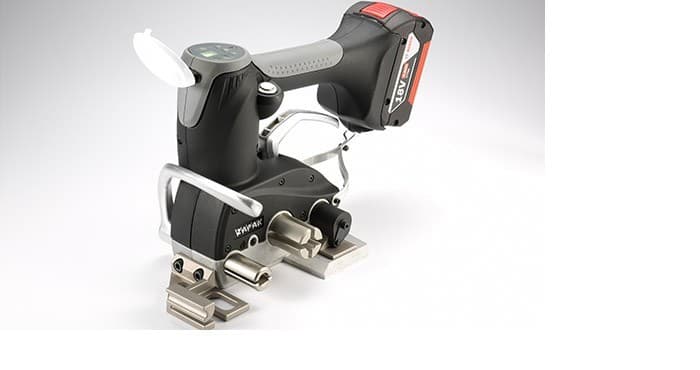

AKU tensioner ZAPAK ZP-CT32A for PES and composite tapes

AKU tensioner ZAPAK ZP-CT32A for PES and composite tapes

The ZAPAK ZP-CT32A cordless hand-held strapping tool is designed for strapping pallets and larger items in locations where a mains power supply or compressed air line is not available. This model is...

product label:601 023546
strapping tape - material:PES, composite
strapping tape - width:19–32 mm
strapping tape - thickness:0.85–1.65 mm
Max. tightening force:3,000–8,000 N
battery:18V 4.0Ah Li-Ion
weight:3.00 kg + 0.60 kg (battery)
Number of cycles per battery charge:350 (PES 32 x 1.6 mm)
charging time:about 35 minutes
Clamps for lutes 1 305 00 - 1 307 00

Clamps for lutes 1 305 00 - 1 307 00

Duct clamps are used to connect ventilation ductwork, particularly in mining operations. The clamp’s design allows for the connection of duct systems with a diameter of 630 mm or more.

Polyolefin Shrink Film 200 x 0.015 mm, 1250 m - Centerfold

Polyolefin Shrink Film 200 x 0.015 mm, 1250 m - Centerfold

Shrink films. Centerfold 200 mm, 0.015 mm, 1250 m.

product designation:700 012262
roll width:200 mm
film thickness:15 µm
winding length:1250 m
mass:7 kg
FS2000

FS2000

FROMM turntable stretch wrapper. Top-class innovation and reliability.

Mast height:Standard: 2500 mm / Optional: up to 3700 mm
Rotary table:1500 - 2400 mm / horseshoe 1650 - 1800 mm
Max. pallet weight:2000 kg (turnstable)
Control panel:Standard: OP1 / OP2 with 99 programs
Trolley:Standard C4 magnetic brake / C6 and C7 single-engine preload
Bias:C4: up to 100% / C6: 150, 200 or 250% / C7: up to 350%
Foil thickness:Stretch film 10-35 my / 500 mm
Options:Cutting device / string making / top pressure / additional roll holder / remote control
FS380A

FS380A

FROMM turntable stretch wrapper. High innovation and reliability.

Mast height:Standard: 2500 mm / Optional: up to 3700 mm
Rotary table:1500 - 2400 mm / horseshoe 1650 - 1800 mm
Max. pallet weight:2000 kg
Control panel:Standard: OP1 / OP2 with 99 programs
Trolley:Standard C4 magnetic brake / C6 and C7 single-engine preload
Bias:C4: up to 100% / C6: 150, 200 or 250% / C7: up to 350%
Foil thickness:Stretch film 10-35 my / 500 mm
Options:Integration into the line / Siemens PLC / conveyor systems
FROMM P359 - Pneumatic Strapping Tool (19-32mm)

FROMM P359 - Pneumatic Strapping Tool (19-32mm)

Unique strapping tool with high tensioning force up to 7000 N. Pneumatic drive. One of the lightest in its class – 8.9 kg.

Tape quality:Polyester (PET) smooth and embossed
Tape dimensions:width 19 - 32.0 mm / thickness 0.60 - 1.53 mm
Weight incl. battery 4.0 Ah:8.9 kg / 19.6 lbs
Dimensions with 4.0 Ah battery:L372 x W176 x H146 mm / 14.7" x 6.9" x 5.7"
Weld type:Friction weld
Average bond strength:approx. 75% (depends on the quality of the tape)
Tensioning force:2000 - 3500 N, 450 - 785 lbs / 4000 - 7000 N, 900 - 1570 lbs (adjustable)
Tensioning speed:approx. 120 mm/s or 60 mm/s
Max. air pressure:6.0 bar / 87 psi
Hanging bracket:supplied with tool
FROMM STARstrap PET Straps

FROMM STARstrap PET Straps

Ultra polyester strap with extreme tensile strength. Replaces high-tensile steel straps for engineering and industrial applications.

Conveyor DR500, plastic rollers, 90° curve, R=800 mm, P=80 mm

Conveyor DR500, plastic rollers, 90° curve, R=800 mm, P=80 mm

Gravity roller conveyor DR 90° curve for assembling curved conveyor lines.

product designation:600 001418
track design:plastic rollers
active track width:500 mm
total track width:580 mm
distance of axes:80 mm
min. length of delivery:225 mm
max. width of goods:600 mm
conveyor height:580-920 mm
load capacity kg/m of track:180 kg
roller diameter:50 mm
inner radius:800 mm
A385

A385

Heavy-duty pneumatic strapping tool with MicroLock™ system. For stationary applications.

Tape quality:Uniflex and Ultraflex max. 1100 N/mm2, 160'000 psi
Tape dimensions:width 9.5 - 20.0 mm / thickness 0.38 - 0.63 mm
Weight:10.0 kg without suspension / 10.5 kg with suspension
Average bond strength:about 80%
Seamless joint:FROMM MicroLock TM
Tape tension:2200 N / 3500 N / 4100 N / 6500 N
Conveyor DP800, steel rollers, D=1000 mm, P=60 mm

Conveyor DP800, steel rollers, D=1000 mm, P=60 mm

Non-powered gravity roller conveyor DP for assembling conveyor lines from straight and curved modules. Primarily for cartons and other goods with flat

product designation:600 001282
track design:steel rollers
diameter of rollers (pulleys):50 mm
carrying capacity:140 kg
conveyor height:580 - 920 mm
conveyor length:1000 mm
max. width of goods:900 mm
min. length of delivery:189 mm
distance of axes:60 mm
total track width:880 mm
active track width:800 mm
Tensioner H-40 for PES Strap

Tensioner H-40 for PES Strap

Tensioner for polyester textile strap (PES), strap width 19–40 mm.

product designation:700 021710
Dimensions (l x w x h):450 x 105 x 270 mm
mass:2,6 kg
width of buckle:35 mm
FV350 – Vertical Wrapping Machine

FV350 – Vertical Wrapping Machine

For panels and bundles of bars, beams, profiles, pipes and cables. Easy to operate, efficient and safe.

Diameter of the ring:50-250 cm
Maximum speed:50-350 rpm
Equipment:Double roll film system / automatic double cutting system / colour touch screen / 6 packing programs / adjustable ring speed / adjustable feed speed / adjustable film tension / automatic start by photo cell
Options:Infeed and outfeed pressure / roller conveyors - vertical rollers / top pressure - vertical rollers automatically / product bridge / remote assistance via Ethernet
Foils:Width: 100 mm / Thickness: up to 30 my
FROMM P329 Smart - Battery Strapping Tool (16-19mm)

FROMM P329 Smart - Battery Strapping Tool (16-19mm)

Intelligent digital strapping tool with full-colour display. Multi-function touchscreen. 3-in-1 one-hand operation. Battery 5.0/9.0 Ah.

Recommended Types of Straps:Polyester (PET) and Polypropylene (PP), smooth and embossed
Tape Dimensions:16.0–19.0 x 0.65–1.35 mm
Weight:4.3 kg (including the 5.0 Ah battery)
Size of the watch with battery:L 351 x W 134 x H 143 mm
Weld Type:Friction weld / joint strength is approximately 75%
Tensioning Speed:32–113 mm/s
Tensile strength:500–4,000 N—continuously adjustable, depending on the type of tape
Regulations:European Safety Standards EN 415-8
Battery:Li-Ion 18 VDC / 5.0 Ah or 9.0 Ah
FR300

FR300

Modular self-propelled robotic FR stretch wrappers. For various large pallets and space-constrained environments.

Mast height:2200 / 2700 / 3000 mm
Radius:1100 mm plus pallet
Control panel:OP1 (1 programme) / OP2 (99 programmes)
Trolley:Pre-draw system with two motors
Bias:Standard to 100% / Pre-stretch 100-400%
Battery capacity:Up to 180 euro pallets / Optional: up to 220 euro pallets
Foil thickness:Stretch film 8-23 my / 500 mm
Other options:Automatic foil cutting system
