Clip 2 024 00 - 2 035 00
Clip 2 024 00 - 2 035 00

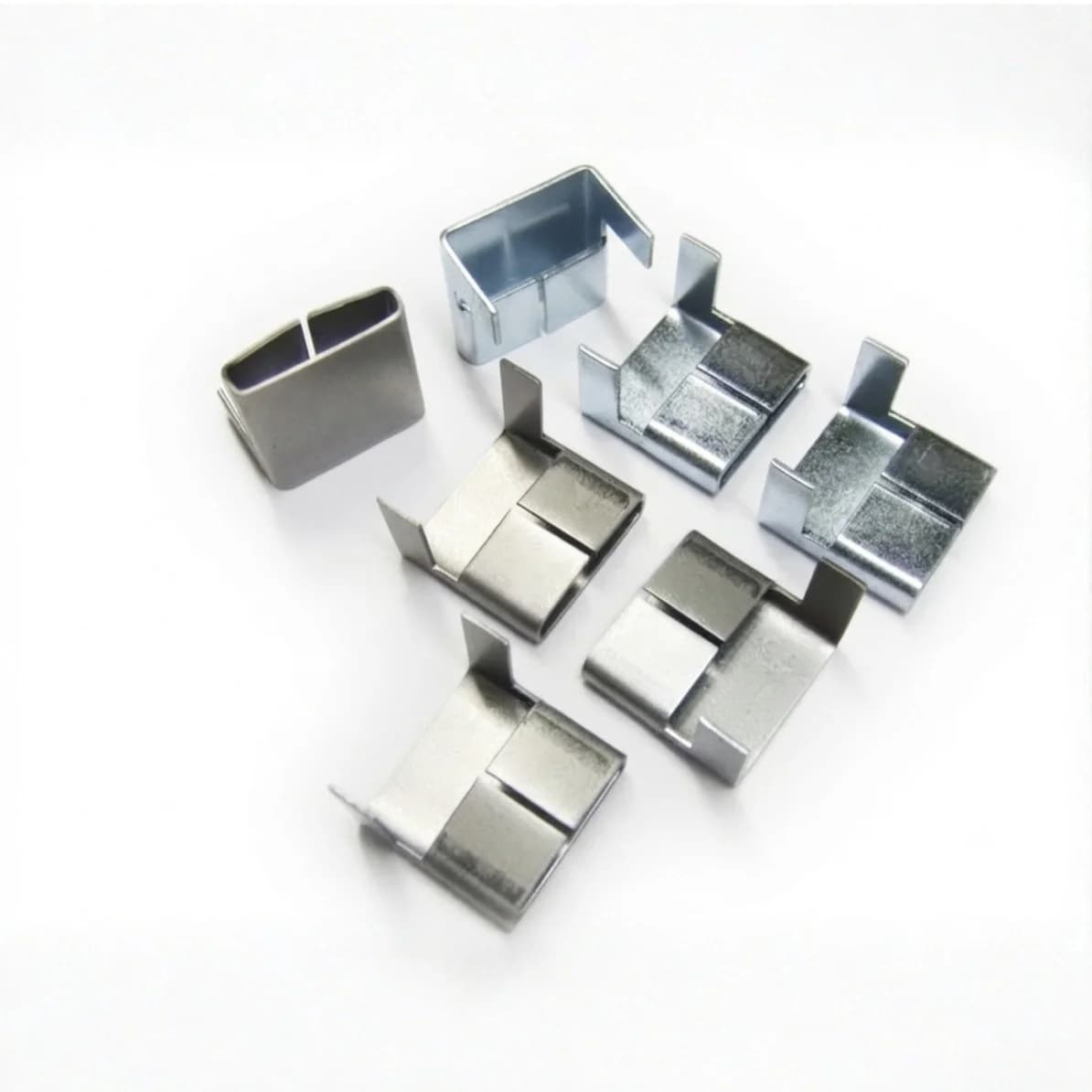

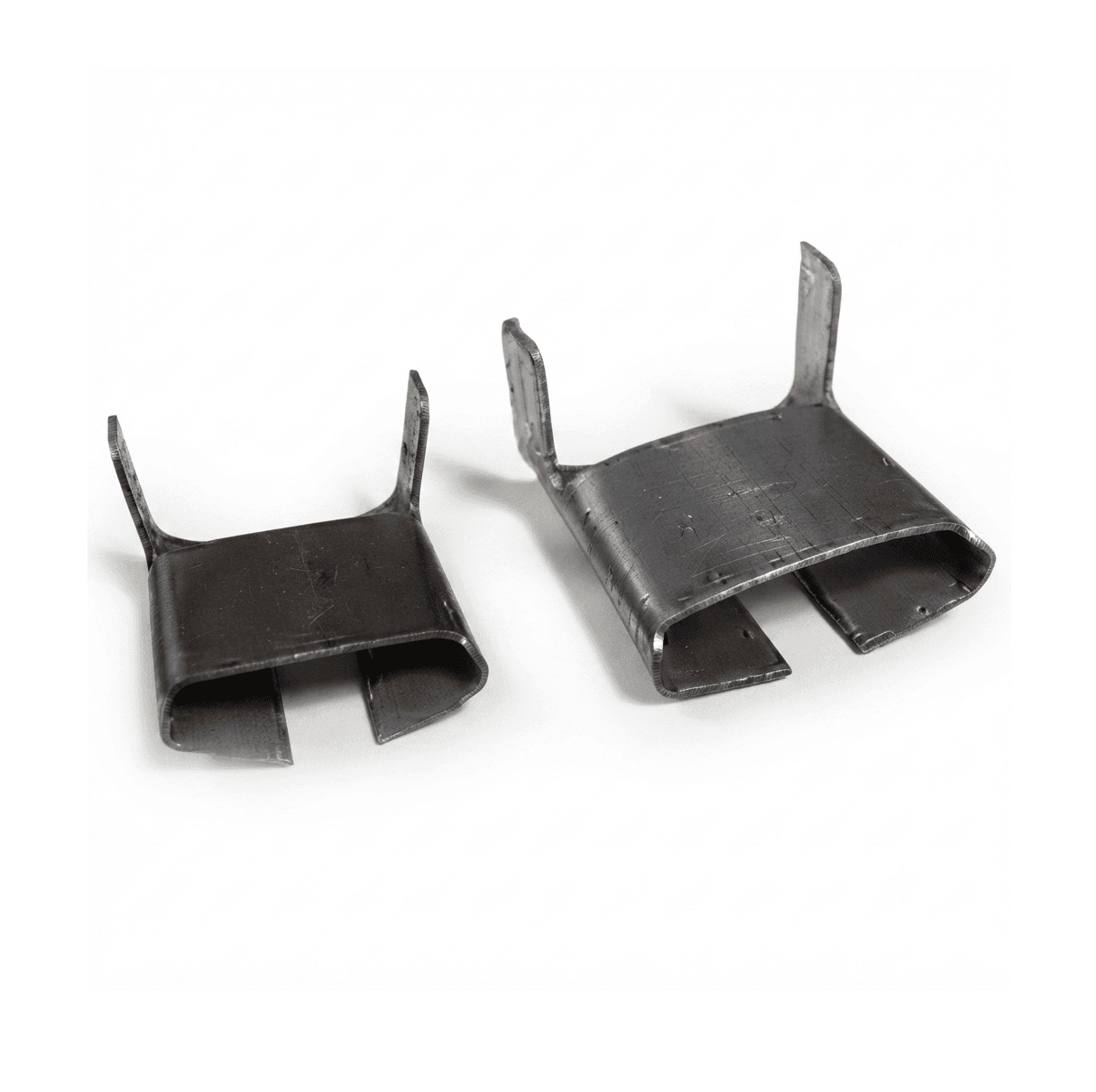

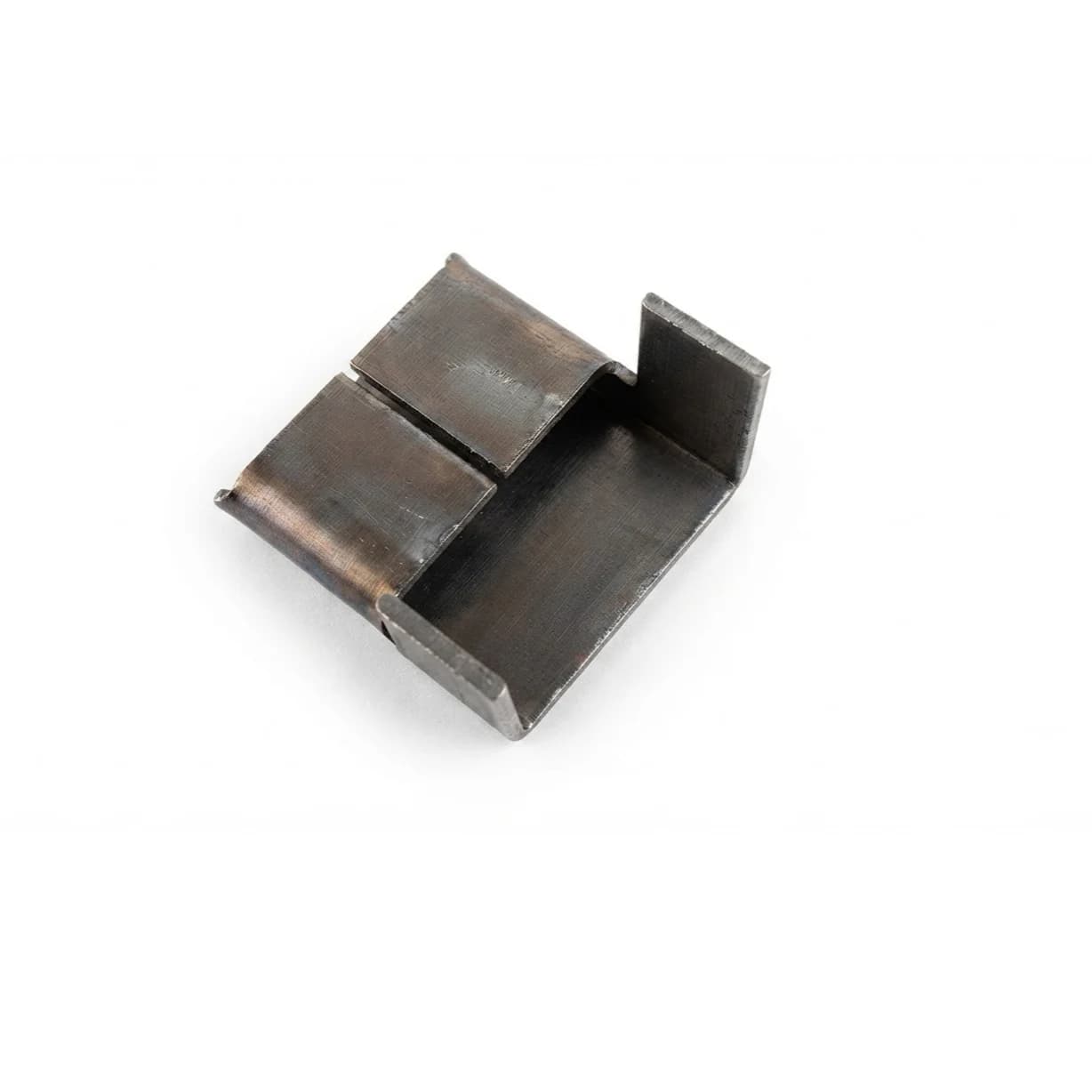

Steel clip - used for manual strapping of shaped or round objects with steel strapping of widths from 13 to 32 mm and thickness from 0.4 to 2.0 mm. The joint is made with strapping tool RM-E (13-20 mm) or RM-E32 (19-32 mm). Clips can be supplied zinc-plated, painted, stainless steel or non-ferrous metal.
Interested in this product? Contact us for a custom quote.
Technical parameters

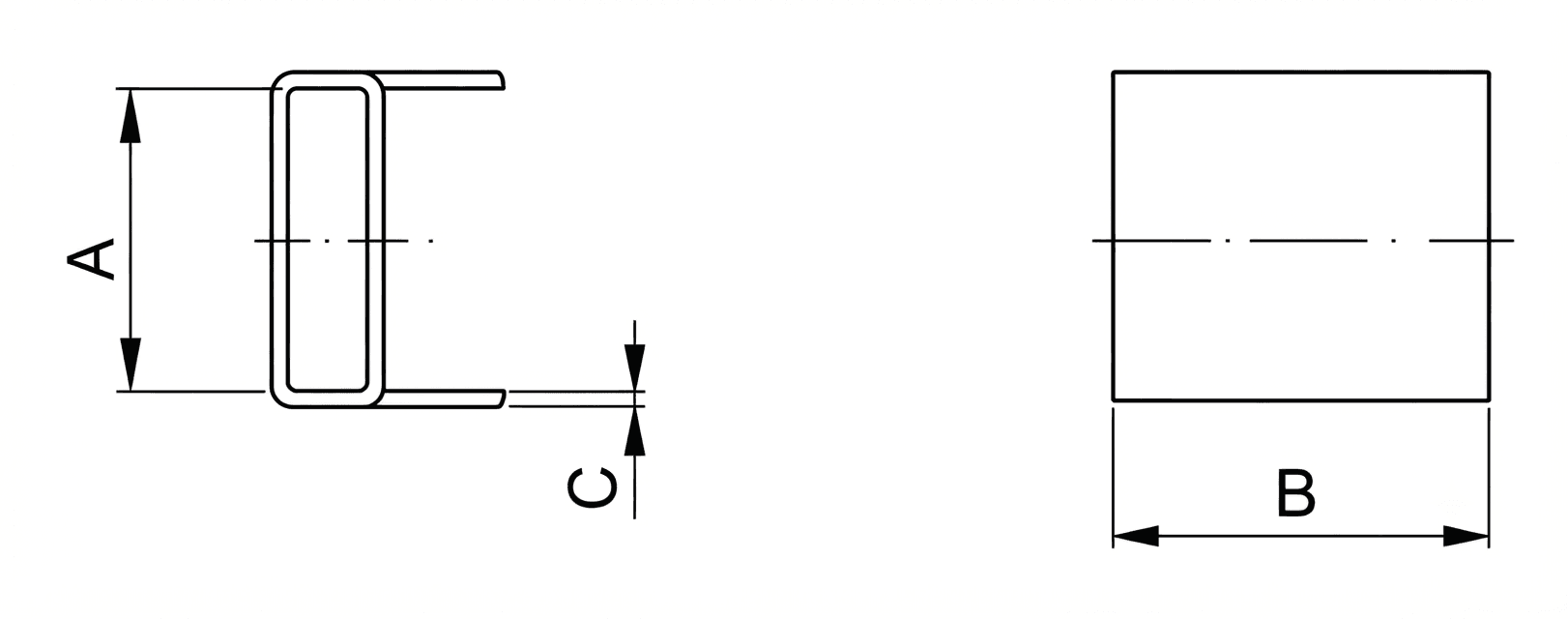

| order number | 2 024 00 | 2 027 00 | 2 030 00 | 2 033 00 | 2 035 00 | 2 035 00 ULTRA |
|---|---|---|---|---|---|---|
| width of buckle | 14,6mm | 17,7mm | 20,3mm | 26mm | 33,2mm | 37mm |
| length of buckle | 20mm | 20mm | 22mm | 32mm | 40mm | 45mm |
| material thickness | 0.8mm | 0.8mm | 0.8mm | 0.8mm | 1.0mm | 2.0mm |
| type and size of tape | tape width 12-13mm | tape width 15-16mm | tape width 19-20mm | tape width 25mm | tape width 32mm | tape width 32mm |
| type of strapping machine | RM-E | RM-E | RM-E; RM-E32 | RM-E32 | RM-E32 | — |
| packing weight carton | 2000pcs = 7,4kg | 1800pcs = 9,2kg | 1300pcs = 11,3kg | 1000pcs = 10,7kg | 1000pcs = 19,4kg | 300pcs = 18kg |
| packing weight pallet | 96kart. = 710kg | 96 times. = 883kg | 96 times. = 1085kg | 60 times. = 642kg | 50kart. = 970kg | 18 times. = 324kg |
Rozměry a varianty
| objednací číslo | šířka spony | délka spony | tloušťka materiálu | druh a rozměr pásky | typ páskovače | hmotnost balení karton | hmotnost balení paleta |
|---|---|---|---|---|---|---|---|
| 2 024 00 | 14,6mm | 20mm | 0,8mm | oc.páska šíře 12-13mm | RM-E | 2000ks = 7,4kg | 96kart. = 710kg |
| 2 027 00 | 17,7mm | 20mm | 0,8mm | oc. páska šíře 15-16mm | RM-E | 1800ks = 9,2kg | 96kart. = 883kg |
| 2 030 00 | 20,3mm | 22mm | 0,8mm | oc. páska šíře 19-20mm | RM-E; RM-E32 | 1300ks = 11,3kg | 96kart. = 1085kg |
| 2 033 00 | 26mm | 32mm | 0,8mm | oc. páska šíře 25mm | RM-E32 | 1000ks = 10,7kg | 60kart. = 642kg |
| 2 035 00 | 33,2mm | 40mm | 1,0mm | oc. páska šíře 32mm | RM-E32 | 1000ks = 19,4kg | 50kart. = 970kg |
| 2 035 00 ULTRA | 37mm | 45mm | 2,0mm | oc. páska šíře 32mm | RM-E32 | 300ks = 18kg | 18kart. = 324kg |
Related products
Buckle 2 118 00
Contact us for a quote.
order number:2 118 00
width of buckle:16.7mm
length of buckle:22mm
material thickness:0.5mm
type and size of tape:oc. tape 16mm
Pneumatic Strapper:CM 11/12
packing weight carton:5000pcs = 12,4kg
packing weight pallet:96kart. = 1190kg
Clamp 2 113 00 - 2 115 00
Steel buckle—used for automatically strapping flat products, goods on pallets, or round objects with 16-mm- and 19-mm-wide steel strapping.
order number:2,113.00
clasp width:16.2
clasp length:28
material thickness:0.5
Type and size of tape:16 mm steel tape
weight of the carton:4,000 pieces = 13.6 kg
package weight, pallet:96 cartons = 1,305 kg
Buckle 2 106 00
Steel buckle - used for automatically strapping goods on pallets with steel strapping.
order number:2 106 00
width of buckle:16mm
length of buckle:30mm
material thickness:0.5mm
type and size of tape:oc. tape 16mm
Pneumatic Strapper:vending machine
package weight disc - loose:2500pcs = 10kg
Buckle 2 102 00
Steel buckle—used for automatically strapping goods on pallets with 6-mm-wide steel strapping.
order number:2 102 00
width of buckle:14mm
length of buckle:27mm
material thickness:0.4mm
type and size of tape:oc. tape 6mm
type of strapping machine:RTN machine
packing weight carton:3x3000pcs = 11kg
