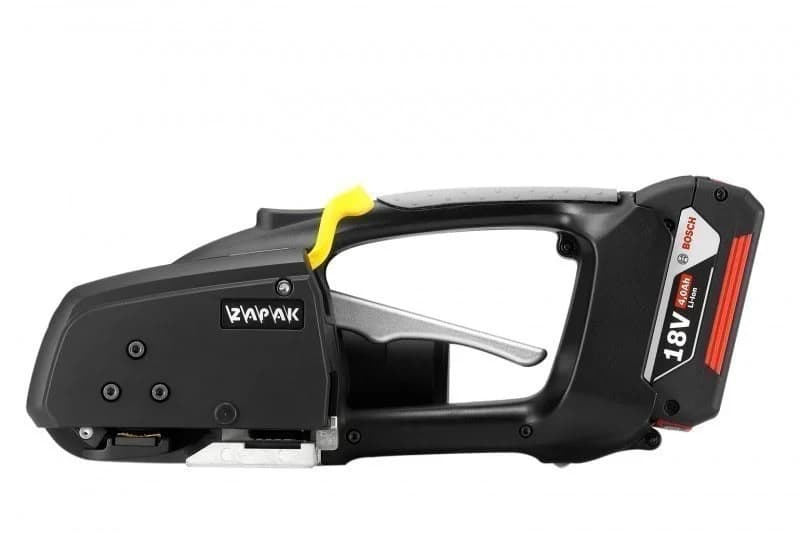

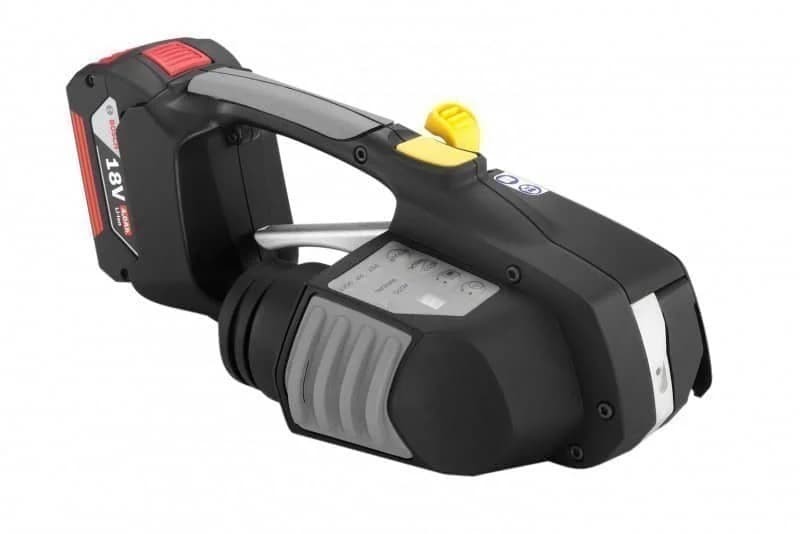

Battery-Powered Strapping Tools ZAPAK ZP90, ZP93 and ZP97 – for PP and PET Straps 9-19mm

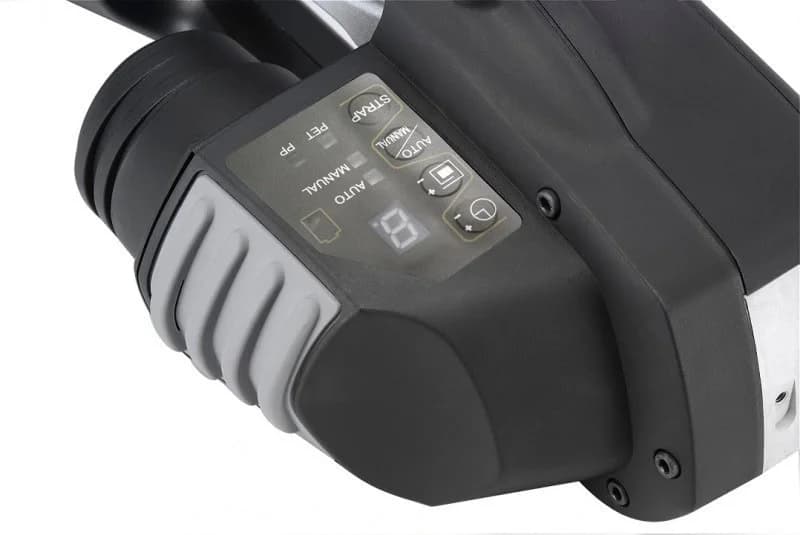

ZAPAK ZP90, ZP93 and ZP97 handheld cordless strapping machines are suitable for strapping pallets or groups of goods with polypropylene (PP) or polyester (PET) tape in places where mains power cannot be used. This type is equipped with automatic tightening and welding of the tapes. Its main advantages include: - high tightening force: - extremely light weight - ergonomic design - excellent price/performance ratio - infinitely adjustable tightening force One-handed operation of the strapping machine increases productivity. The new unique brushless motor ensures even longer battery life and increased motor life. Touch control panel with digital indicator lights for intuitive adjustment to the desired conditions. Basic differences between ZP92B / ZP96B (previous models) and ZP90 / ZP93 / ZP97 (latest models): - new brushless motor - smoother tensioning and tightening operation - new Bosch Li-Ion battery - higher capacity (4000 mAh), charge indicator directly on the battery - up to 40% more times per charge, lower power consumption, longer life of the AKU - lower battery weight

Interested in this product? Contact us for a custom quote.

Dimensions and Variants

product labelsupply voltagejoint designRecommended tapetape width [mm]Tape thickness [mm]weighttightening forceNo. of cycles per charge (battery recharge time)battery charging time
ZAPAK ZP9018V Batteryby friction weldingPP, PET9–13 mm0.45–0.85 mm3.44 kg, including the battery150–1,200 N650 (PP 12x0.7)30 minutes
ZAPAK ZP9318V Batteryby friction weldingPP, PET9–16 mm0.55–1.27 mm3.44 kg, including the battery2,500 N440 (PET 16x1.0)30 minutes
ZAPAK ZP9718V Batteryby friction weldingPP, PET15–19 mm0.65–1.27 mm3.44 kg, including the battery4,000 N440 (PET 16x1.0)30 minutes
