Pneumatic strapping tools ZAPAK ZP28-6A and 9A for PP, PET strap 12-19mm
Pneumatic strapping tools ZAPAK ZP28-6A and 9A for PP, PET strap 12-19mm
Hand-held pneumatically driven strapping machines suitable for strapping pallets or groups of goods with polypropylene or polyester tape. Compared to electric drives, the pneumatic drive is particularly advantageous due to its stable operation, high level of safety and, due to the ideal shock absorption, also has a long service life. This type of strapping machine is equipped with automatic strap tightening and welding. Its main advantages are its high tightening force, ergonomic design, high reliability and excellent price/performance ratio. The ZAPAK ZP-28 strapping machine is designed for strapping pallets and larger items. It is suitable for plants with medium packaging capacity. The advantage of this strapping machine is simple operation (the operator guides the strap around the packed object, inserts it into the strapping slot, after pressing the button the strap is automatically tightened and welded) High tightening force up to 3500 N.
Interested in this product? Contact us for a custom quote.
Technical parameters
| product designation | ZAPAK ZP28-6A | ZAPAK ZP28-9A |
|---|---|---|
| binding tape - material | PP, PET | PP, PET |
| binding tape width | 15 - 16 mm (PP), 12 - 16 mm (PET) | 15 - 19mm |
| binding tape thickness | 0,75 - 1,05 mm (PP), 0,55 - 1,05 mm (PET) | 0,75 - 1,05 (PP), 0,55 - 1,05 (PET) mm |
| mass | 4,3 kg | 4,3 kg |
| machine length | 375 mm | 375 mm |
| machine width | 145 mm | 145 mm |
| machine height | 145 mm | 145 mm |
| operating air pressure | 6 - 7 bar | 6 - 7 bar |
| air consumption | 12 l/cycle | 12 l/cycle |
| max. tightening force | 1 800 N (PP), 3 500 N (PET) | 1 800 N (PP), 3 500 N (PET) |
Rozměry a varianty
| označení produktu | vázací páska - materiál | vázací páska šíře | vázací páska tloušťka | hmotnost | délka stroje | šířka stroje | výška stroje | provozní tlak vzduchu | spotřeba vzduchu | max. utahovací síla |
|---|---|---|---|---|---|---|---|---|---|---|
| ZAPAK ZP28-6A | PP, PET | 15 - 16 mm (PP), 12 - 16 mm (PET) | 0,75 - 1,05 mm (PP), 0,55 - 1,05 mm (PET) | 4,3 kg | 375 mm | 145 mm | 145 mm | 6 - 7 bar | 12 l/cyklus | 1 800 N (PP), 3 500 N (PET) |
| ZAPAK ZP28-9A | PP, PET | 15 - 19mm | 0,75 - 1,05 (PP), 0,55 - 1,05 (PET) mm | 4,3 kg | 375 mm | 145 mm | 145 mm | 6 - 7 bar | 12 l/cyklus | 1 800 N (PP), 3 500 N (PET) |
Related products
Gravity Roller Conveyor DR300, Plastic Rollers, 90° Curve, R=800 mm, Pitch=100 mm
Gravity roller conveyor DR300, 90° curve, plastic rollers, radius 800 mm, roller pitch 100 mm.

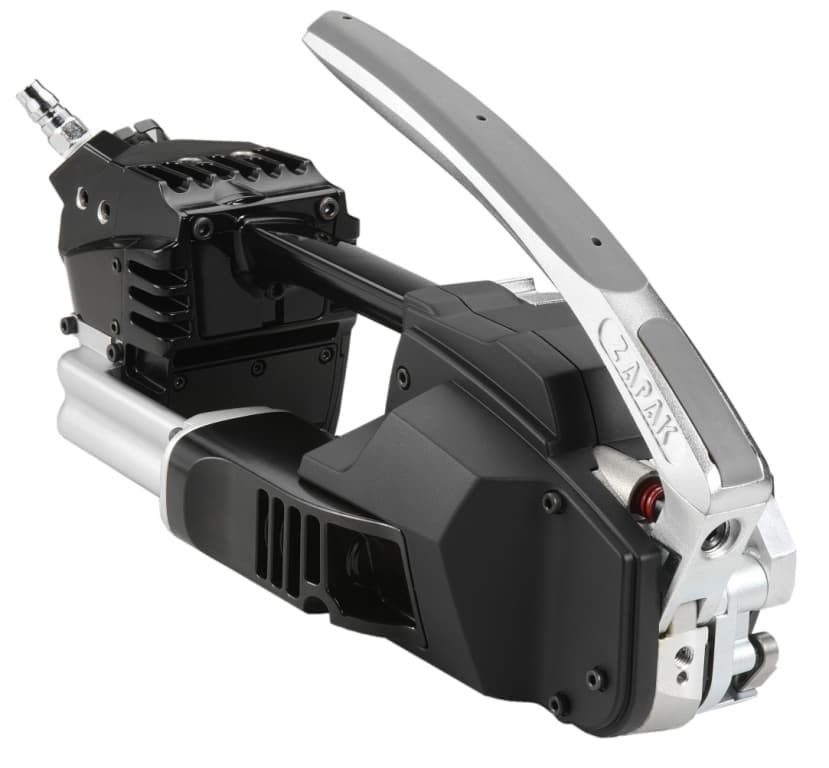

Pneumatic strapping tool ZAPAK ZP28-6A
