Table models with cut-off knife suitable for the production and sealing of foil bags. The weld length is 300 or 400 mm depending on the modification. The weld is made with a 2 mm wide kanthal weld plate. The device is characterized by high operator safety - the knife comes out only after pressing the upper jaw to the lower one. The cutting of the foil is done about 6 mm behind the weld. A suitable complement to these models is a table-top unwrapper for film widths up to 300 or 600 mm. This model is designed for welds up to 300 mm.

Interested in this product? Contact us for a custom quote.

Technical parameters

typeHC-300 - width 300 mm, built-in knifeHC-400 - width 400 mm, built-in knifeHC-500 - width 500 mm, built-in knife
product designation700 001 192700 001 199700 009 640
installed power input0,5 kW0,75 kW0,9 kW
jaw posturemanualmanualmanual
mass5.4 kg7.3 kg8.0 kg
max. film thickness0.12 mm0.12 mm0.12 mm
max. weld length300 mm400 mm500 mm
weld width2 mm2 mm2 mm
built-in knifeyesyesyes

Rozměry a varianty

typoznačení produktuinstalovaný příkondržení čelistihmotnostmax. tloušťka fóliemax. délka svarušíře svaruzabudovaný nůž
HC-300 - šíře 300 mm, zabudovaný nůž700 001 1920,5 kWruční5,4 kg0,12 mm300 mm2 mmano
HC-400 - šíře 400 mm, zabudovaný nůž700 001 1990,75 kWruční7,3 kg0,12 mm400 mm2 mmano
HC-500 - šíře 500 mm, zabudovaný nůž700 009 6400,9 kWruční8,0 kg0,12 mm500 mm2 mmano

Related products

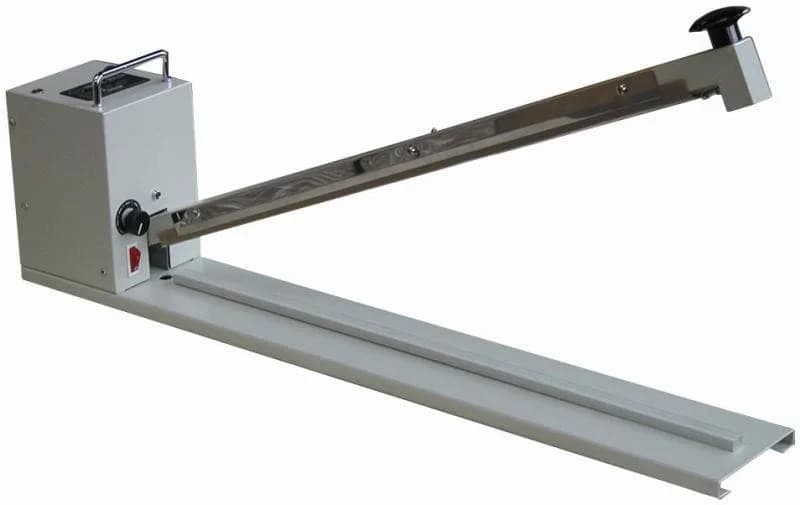

Sealing Jaw HI-600 - Width 600 mm

Sealing Jaw HI-600 - Width 600 mm

Professional tabletop model. Extra long seals up to 600/800 mm. Thermistor. Two types of heating strips.

product designation:700 001191
installed power input:0.8 kW
jaw posture:Manual
mass:8,5 kg
max. film thickness:0.15 mm
max. weld length:600 mm
weld width:2 mm

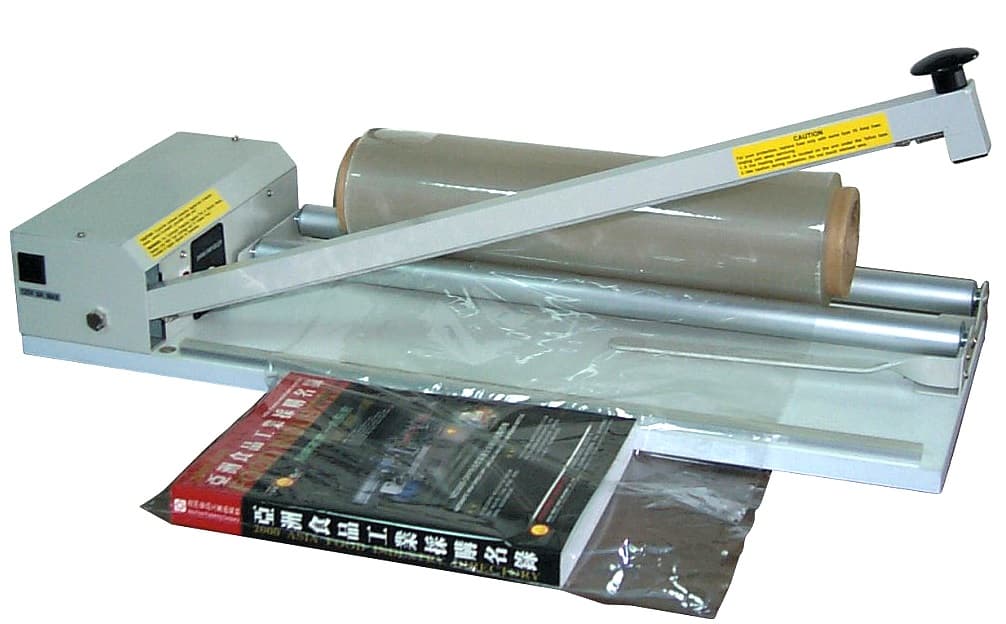

Sealing Jaw HI-800IP - 800 mm, Including Film Unwinder

Sealing Jaw HI-800IP - 800 mm, Including Film Unwinder

Professional tabletop model. Seals up to 800 mm. Thermistor. Built-in film unwinder.

product designation:700 001198
installed power input:0.8 kW
mass:8,5 kg
max. film thickness:0.12 mm
max. weld length:800 mm
weld width:0.8 mm wire

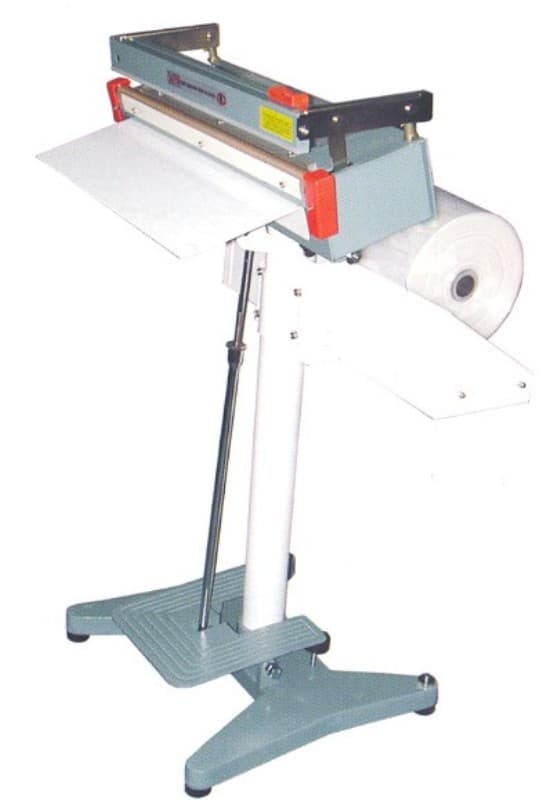

Sealing Jaw FC

Sealing Jaw FC

Floor-standing model with foot pedal and knife. Seal 600 mm, width 2/5 mm. For heavy foil sacks up to 0.200 mm.

type:FC-600 - width 600 mm, built-in knife | FC-605 - width 600 mm, built-in knife
product designation:700 001636 | 700 007826
weld width:2 mm | 5 mm

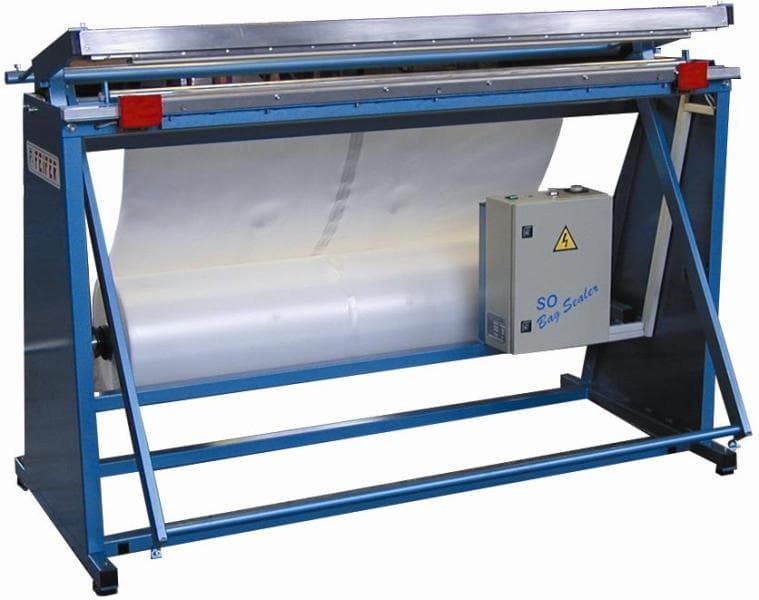

Sealing Jaw SO
