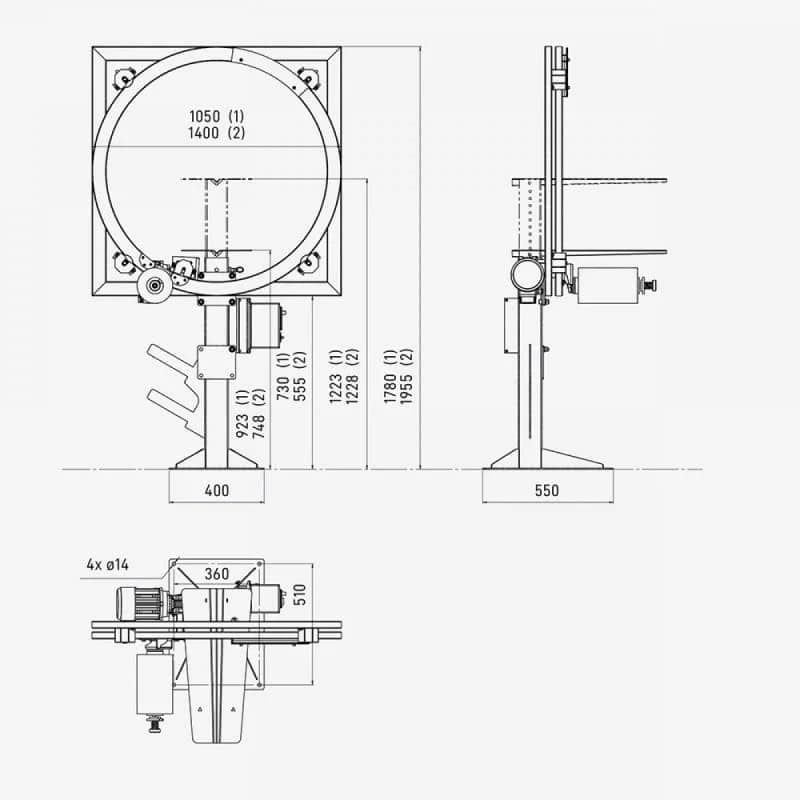

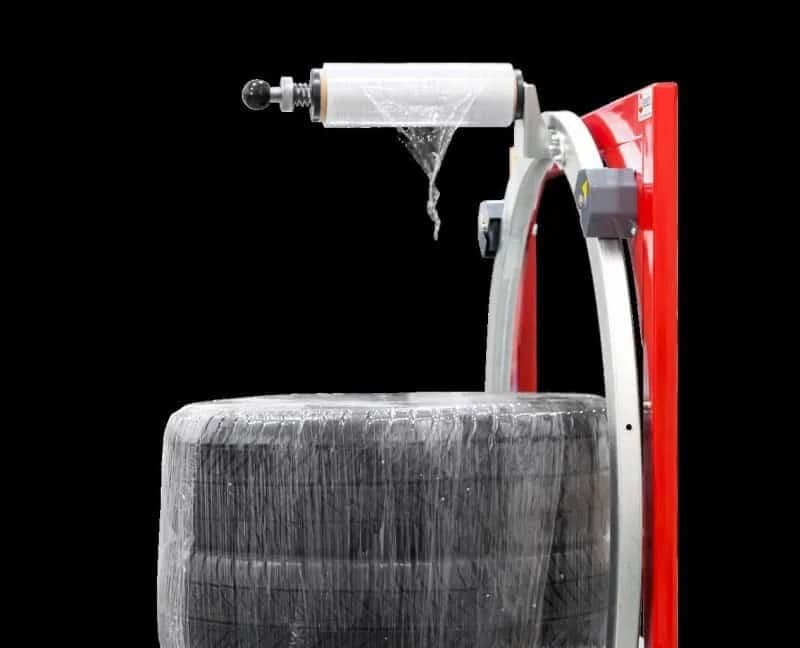

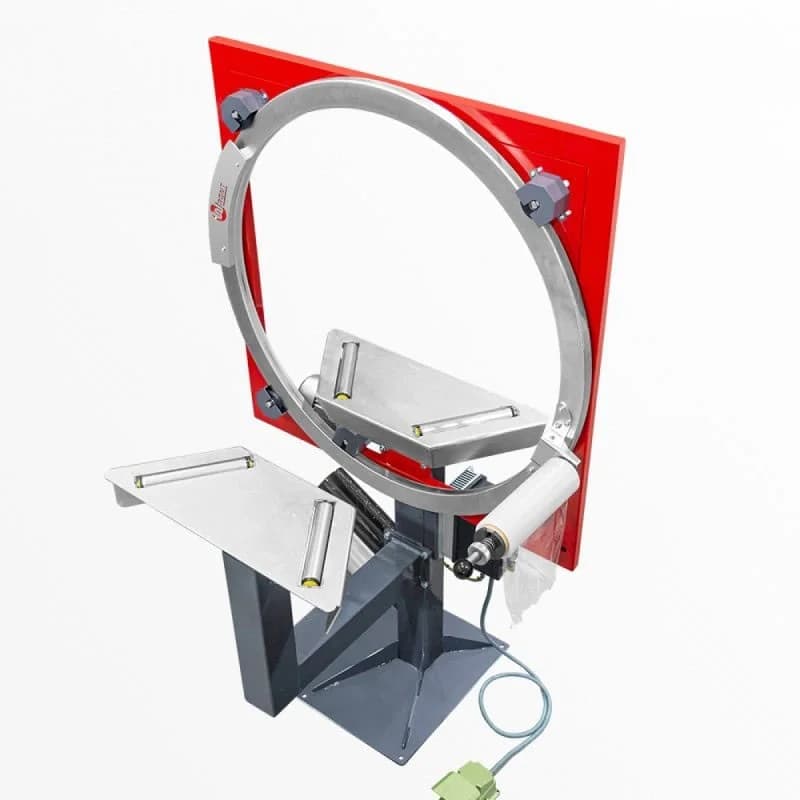

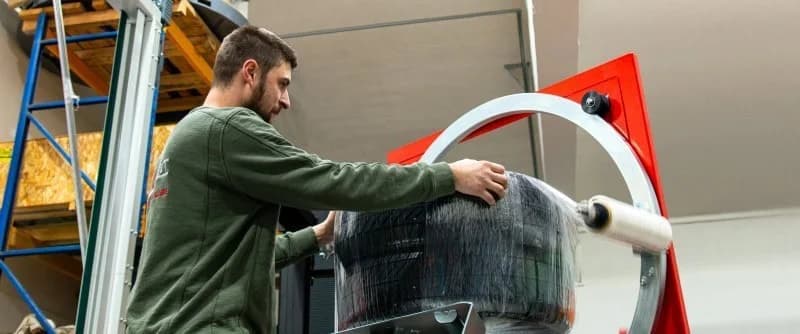

Horizontal tyre wrapping machine WR1050T (1400T)

The WR1050T (WR1400T) is a motorised wrapping machine for wrapping tyres or other round objects in black or white stretch film, ensuring the anonymity of the wrapped goods and protecting them from dust and moisture. With the WR1050T (1400T) your shipments will be shipped faster and more efficiently. Wrapping tyres in stretch film becomes both more economical and more aesthetically pleasing with the WR1050T (WR1400T). The machine is equipped with a table for packing shipments in the shape of a circle (tyre). Thanks to the motorized wrapping, the operator can wrap the shipments with minimum effort. Main advantages: - motorised wrapping - simple and safe handling - height-adjustable frame - height-adjustable work table - quick film change - infinitely variable film tension control - durable surface finish - motor drive and foot pedal control - table for wrapping packages (items) in a circle shape Maximum dimensions of the packed item (w x h): - maximum diagonal for a circular object 880mm (1230mm - WR1400T) - 600 x 650mm (600 x 1000mm - WR1400T) for a square or rectangular object - tall and narrow object 250 x 750mm (250 x 1000mm - WR1400T) - wide and low 875 x 50mm (1200 x 50mm - WR1400T) Other possible modifications and options: - Wooden, waterproof pad for customers who cannot or do not wish to anchor the device to the floor - adhesive tape applicator - 500 mm or 125 mm wide film holder - 500 mm wide bubble wrap holder (A 500 mm wide bubble wrap holder is suitable for objects with a large cross section. It is not possible to achieve the same tightening force as with a 250 mm wide foil holder.) - table extension to the rear 250 mm or 500 mm

Interested in this product? Contact us for a custom quote.
