Strojní balení

57 products

Foam U-Profile U4, Inner Width 45 mm, Length 2000 mm

Foam U-Profile U4, Inner Width 45 mm, Length 2000 mm

Protective U-profile for edges of flat objects. Inner width 45 mm.

OMC-H SERIES

OMC-H SERIES

Horizontal OMC-H wrapping machines. Modular design, high reliability and long service life.

FS500A

FS500A

Semi-automatic FROMM stretch wrapper. Innovative design and reliability.

Height:Standard: max. 2500 mm / Optional: max. 3000 mm
Pallet size:Standard: 1200 x 1200 mm
Control panel:Standard: OP2 (99 programs)
Trolley:Standard: Magnetic brake C4 / Mech. brake C2 / one-motor pre-stretch C6 / two-motor pre-stretch C7
Bias:Standard: up to 100% / C6 150/200/250% / C7 up to 400%
Foil thickness:Stretch film 9-35 my / 500 mm
Options:Automatic foil application, cutting, printing and welding
Other options:Integration into the line / Siemens PLC / conveyor systems
FS500

FS500

Semi-automatic FROMM stretch wrapper. Innovative design, reliability, upper-segment performance.

Height:Standard: max. 2500 mm / Optional: max. 3000 mm
Pallet size:Standard: 1200 x 1200 mm
Control panel:Standard: OP2 (99 programs)
Trolley:Standard: Magnetic brake C4 / Mech. brake C2 / one-motor pre-stretch C6 / two-motor pre-stretch C7
Bias:Standard: up to 100% / C6: 150/200/250% / C7: up to 120-350%
Foil thickness:Stretch film 9-35 my / 500 mm
Wall mounting:Without supporting mast
Options:Cutting equipment / string making / remote control
Bag Sealer BS-881 - Horizontal, Continuous

Bag Sealer BS-881 - Horizontal, Continuous

Horizontal continuous bag sealing machine for short and wide bags. Electronic regulation, code embossing, stainless steel casing.

product designation:600 002270
packaging material - foil:LDPE stretch
width of the foil:125 mm
max. film thickness:30 µm
min. size of the packed item:80 x 50 mm
speed of the impeller:max. 60 rpm.
conveyor width:600 / 1000 mm
conveyor height:900 mm
Dimensions (l x w x h):1000 x 1580 x 2000 mm
supply voltage:400 V / 50 Hz
installed power input:2.5 kW

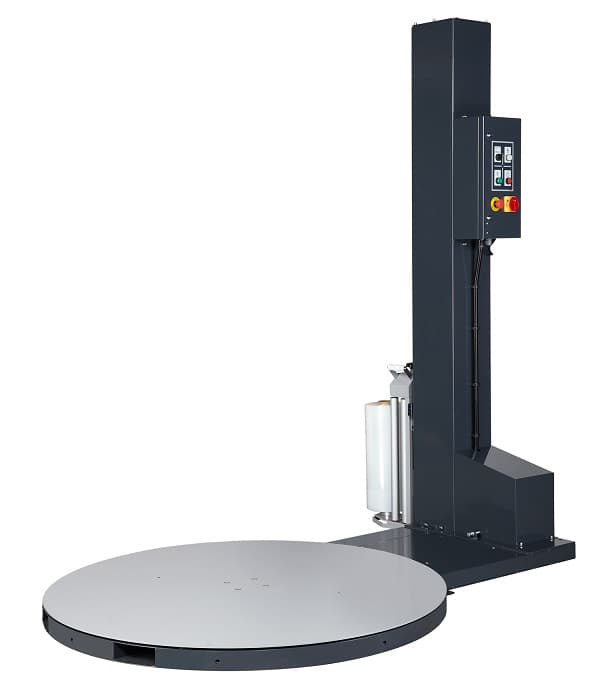

Wrapping Machine EXP-26B

Wrapping Machine EXP-26B

Automatic pallet wrapping machine for low to medium throughput capacity.

product designation:700 012483
packaging material - foil:mechanical stretch
max. pallet size (l x w):1200 x 800, 1050 x 1050 mm
max. pallet height:2200 mm
max. pallet weight:1200 kg
max. turntable speed:10 rpm.
turntable height:76 mm
turntable diameter:1500 mm
supply voltage:230 V / 50 Hz
installed power input:1 kW
machine length:2300 mm
machine width:1500 mm
machine height:2346 mm
mass:335 kg
Sealing Jaw SO-60C

Sealing Jaw SO-60C

Industrial sealing jaw with integrated cutting blade for the production of film bags. Seal length 600 mm, kanthal 4 mm. Foot pedal operation.

product designation:700 001174
supply voltage:230V/50Hz
jaw dimensions:550 x 420 mm
max. packing height:250 mm
installed power input:3.77 kW
average energy consumption:1,6 - 2,3 kW/hr
max. foil size (width x diameter):550 x 250 mm
machine length:1320 mm
machine width:820 mm
machine height:1190 mm
mass:100 kg
FS380 LOW

FS380 LOW

FROMM turntable stretch wrapper, low-profile version.

Mast height:Standard: 2500 mm / Optional: up to 3700 mm
Rotary table:1650 mm
Max. pallet weight:1200 kg
Control panel:Standard: OP1 / OP2 with 99 programs
Trolley:Standard C4 magnetic brake / C6 and C7 single-engine preload
Bias:Standard up to 100% / Sleigh C6 150/200/250% / Sleigh C7 up to 350%
Foil thickness:C4: up to 100% / C6: 150, 200 or 250% / C7: up to 350%
Options:Cutting device / string making / top pressure / additional roll holder / remote control
Chamber Packaging Machine APH-680

Chamber Packaging Machine APH-680

Chamber packaging machines for consumer goods, printed materials, textiles, and food products in shrink films.

product designation:700 001176
supply voltage:400V/50Hz
jaw dimensions:800 x 620 mm
max. packing height:250 mm
installed power input:5.3 kW
average energy consumption:2.3 - 3.4 kW/hr
max. foil size (width x diameter):750 x 250 mm
machine length:1575 mm
machine width:1020 mm
machine height:1190 mm
mass:150 kg
Stretch Wrapping Machine EXP-108

Stretch Wrapping Machine EXP-108

3 configurable programs, optional motorized film pre-stretch, high automation, medium to large capacity.

product designation:600 002216
packaging material - foil:mechanical stretch
max. foil size (width x diameter):500 x 250 mm
max. pallet size (l x w):1500 x 1500 mm
max. packing height:2000 mm
min. pack diameter:500 mm
max. pack diameter:1800 mm
max. length of package of the item:1800 mm
max. weight of the packed item:1000 kg
foil tensioning:Yes
turntable speed:0 - 8 rpm.
turntable diameter:2140 mm
turntable height:400 mm
supply voltage:230V / 50Hz
installed power input:1.6 kW
working environment temperature:0 - 45 °C
machine dimensions (l x w x h):3778 x 2300 x 2345 mm
machine weight:approx. 800 kg
Wrapping machine EXR-401 - horizontal, semi-automatic with film cutting

Wrapping machine EXR-401 - horizontal, semi-automatic with film cutting

Similar to EXR-301 with automatic film holding and cutting. For long items in stretch film.

product designation:700 009940
supply voltage:230V/50Hz
mass:290 kg
machine length:1246 mm
machine width:1084 mm
machine height:1512 mm
operating air pressure:6 - 7 bar
outer diameter of the winding cavity:76 mm
wrapping film - material:LDPE stretch
max. film width:76, 100, 125 mm
max. film thickness:19 - 35 my
conveyor width:560 mm
conveyor height:910 mm
min. package size item size (W x H):100 x 50 mm or 100 mm diameter
max. package size item (W x H):square 305 x 305 mm, rectangle 508 x 178 mm, circle diameter 330 mm
recommended length of package. of the subject:> 500 mm
max. foil diameter:178 mm
speed of the impeller:max. 100 rpm.
Wrapping machine EXR-301 - horizontal, semi-automatic

Wrapping machine EXR-301 - horizontal, semi-automatic

For long items (carpets, pipes, strips, profiles) in stretch film. Manual feed. Stainless steel work tables.

product designation:700 008953
supply voltage:230V/50Hz
mass:290 kg
machine length:1246 mm
machine width:1084 mm
machine height:1512 mm
outer diameter of the winding cavity:76 mm
wrapping film - material:LDPE stretch
max. film width:76, 100, 125 mm
max. film thickness:19 - 35 my
conveyor width:560 mm
conveyor height:910 mm
min. package size item size (W x H):100 x 50 mm or 100 mm diameter
max. package size item (W x H):square 305 x 305 mm, rectangle 508 x 178 mm, circle diameter 330 mm
recommended length of package. of the subject:> 500 mm
max. foil diameter:178 mm
speed of the impeller:max. 100 rpm.
Horizontal tyre wrapping machine WR1050T (1400T)

Horizontal tyre wrapping machine WR1050T (1400T)

Motorised wrapping machine for tyres and round objects in black/white stretch film. Ensures anonymity and protection.

FR300

FR300

Modular self-propelled robotic FR stretch wrappers. For various large pallets and space-constrained environments.

Mast height:2200 / 2700 / 3000 mm
Radius:1100 mm plus pallet
Control panel:OP1 (1 programme) / OP2 (99 programmes)
Trolley:Pre-draw system with two motors
Bias:Standard to 100% / Pre-stretch 100-400%
Battery capacity:Up to 180 euro pallets / Optional: up to 220 euro pallets
Foil thickness:Stretch film 8-23 my / 500 mm
Other options:Automatic foil cutting system
Semi-automatic packaging machine SL-70SA PROFESSOR

Semi-automatic packaging machine SL-70SA PROFESSOR

Semi-automatic packaging machine for PE film (LDPE). For medium capacity.

product designation:600 000703
supply voltage:400V/50Hz
installed power input:2 kW
max. foil size (width x diameter):650 x 300 mm
operating air pressure:4 - 6.5 bar
packaging material - foil:LDPE stretch
film thickness:90 µm
machine length:1350 mm
machine width:1360 mm
machine height:2150 mm
working table height:1000 mm
mass:350 kg
FR2000

FR2000

FROMM wrapping machines for efficient and safe pallet packaging. Modular construction.

Mast height:2200 / 2700 / 3000 mm
Radius:1100 mm plus pallet
Control panel:OP1 (1 programme) / OP2 (99 programmes)
Trolley:Single engine preload system
Bias:Standard up to 100% / Pre-stretch 150-250%
Battery capacity:Up to 180 euro pallets / Optional: up to 220 euro pallets
Foil thickness:Stretch film 8-23 my / 500 mm
Options:Automatic foil cutting system
Horizontal wrapping machine WR1400M

Horizontal wrapping machine WR1400M

Motorised horizontal wrapping machine for larger shipments in stretch film.

PE Foam Pipe Insulation, 48/6 mm, Length 2 m

PE Foam Pipe Insulation, 48/6 mm, Length 2 m

Thermal insulation tube made of PE foam. Inner diameter 48 mm, wall thickness 6 mm.

product designation:700 024420
packaging material - foil:mechanical stretch
max. pallet size (l x w):1200 x 800, 1050 x 1050 mm
max. pallet height:2100 mm
max. pallet weight:1500 kg
turntable speed:0-13 rpm.
turntable height:80 mm
turntable diameter:1500 mm
supply voltage:230V/50Hz
installed power input:1.2 kW
machine dimensions (l x w x h):2455 x 1500 x 2280 mm
mass:390 kg
OMC-CW Series

OMC-CW Series

OMC-CW wrapping machines for rectangular products requiring water and environmental protection.

Automatic Packaging Machine SFA-35 Long Packer

Automatic Packaging Machine SFA-35 Long Packer

For packaging long items in PE film — boards, planks, and similar products.

product designation:600 000315
supply voltage:400V/50Hz
max. packing height:120 mm
installed power input:2.5 kW
operating air pressure:4 - 6.5 bar
packaging material - foil:shrink PE
film thickness:90 µm
max. width of the packed item:200 mm
conveyor height at inlet and outlet:800 - 900 mm
machine length:1500 mm
machine width:1300 mm
machine height:1300 mm
mass:300 kg
PE Foam Pipe Insulation, 42/6 mm, Length 2 m

PE Foam Pipe Insulation, 42/6 mm, Length 2 m

Thermal insulation tube made of PE foam. Inner diameter 42 mm, wall thickness 6 mm.

product designation:700 024416
packaging material - foil:mechanical stretch
max. pallet size (l x w):1200 x 800, 1050 x 1050 mm
max. pallet height:2100 mm
max. pallet weight:1500 kg
turntable speed:0-13 rpm.
turntable height:80 mm
turntable diameter:1500 mm
supply voltage:230V/50Hz
installed power input:1 kW
machine dimensions (l x w x h):2455 x 1500 x 2280 mm
mass:360 kg
OMC-R Series

OMC-R Series

OMC-R wrapping machines for packaging paper rolls, metals, plastics and composites.

Automatic Bagging Machine SIMPLICITA BAG® SMART 600

Automatic Bagging Machine SIMPLICITA BAG® SMART 600

Maximum versatility with minimum space requirements. Manual and automatic operation. Up to 60 bags/min.

product designation:700 022872
Dimensions (l x w x h):1020 x 1060 x 1170 mm
mass:140 kg
packaging material - foil:LDPE
type of foil:sleeve (hose)
max. roll weight:18 kg
max. film thickness:80 µm
max. foil size (width x diameter):600 x 300 mm
supply voltage:220V/50/60 Hz
operating air pressure:4 - 8 bar

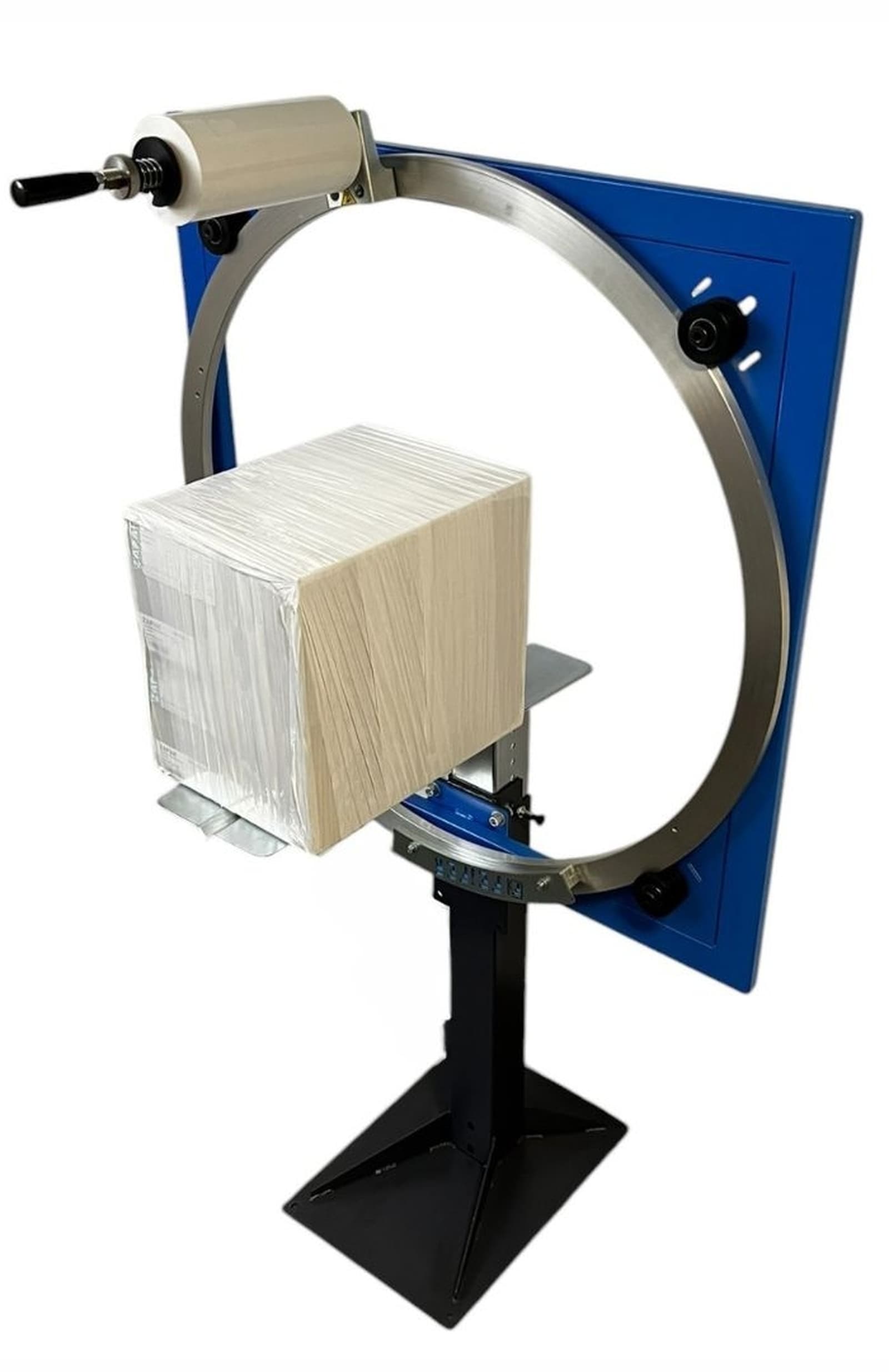

Horizontal Wrapping Machine EXR-1050WR WrapMate

Horizontal Wrapping Machine EXR-1050WR WrapMate

EXR-WrapMate series machines for wrapping parcels in stretch film.

product designation:700 001161
packaging material - foil:hand stretch
machine dimensions (l x w x h):774 x 1050 x 1780 mm
temperature range:0 - 40 °C
speed of the impeller:max. 30 rpm.
min. size of the packed item:250 x 50 mm
cavity diameter:50 mm
max. foil diameter:100 mm
film thickness:10-35 µm
width of the foil:(250 standard, 125 or 500 option) mm
mass:without accessories approx. 100 kg
FS380A

FS380A

FROMM turntable stretch wrapper. High innovation and reliability.

Mast height:Standard: 2500 mm / Optional: up to 3700 mm
Rotary table:1500 - 2400 mm / horseshoe 1650 - 1800 mm
Max. pallet weight:2000 kg
Control panel:Standard: OP1 / OP2 with 99 programs
Trolley:Standard C4 magnetic brake / C6 and C7 single-engine preload
Bias:C4: up to 100% / C6: 150, 200 or 250% / C7: up to 350%
Foil thickness:Stretch film 10-35 my / 500 mm
Options:Integration into the line / Siemens PLC / conveyor systems
FV300 – Vertical Wrapping Machine

FV300 – Vertical Wrapping Machine

For light to medium-weight long products. Panels, bars, profiles, pipes, boards and cables.

Diameter of the ring:50-250 cm
Maximum speed:50-350 rpm
Equipment:Double roll film system / adjustable ring speed / adjustable film tension / foot pedal for easy operation
Options:Cutting system / roller conveyors / vertical rollers / manual fixable top pressures / product bridge for short products / wheels with brakes / bubble wrap dispenser
Foils:Width: 100 mm / Thickness: up to 30 my
Horizontal wrapping machine WR1050M

Horizontal wrapping machine WR1050M

Motorised horizontal wrapping machine for wrapping shipments in stretch film.

Wrapping machine EXP-H2600 RONDO

Wrapping machine EXP-H2600 RONDO

Horizontal wrapping machine for large items (doors, windows, panels). Motorised input and output conveyor 3 m.

product designation:700 008459
supply voltage:400V/50Hz
installed power input:6 kW
wrapping film - material:LDPE stretch
max. film width:500 mm
max. film thickness:30 My
conveyor speed:4 m/min.
width of motor conveyor:1250 mm
conveyor height:900 mm
diameter of the orbital wreath:2600 mm
max. speed of the impeller:16 rpm
min. package size item size (W x H):60 x 1000 mm
max. package size item (W x H):1250 x 1000 mm
recommended length of package. of the subject:2500 - 13000 mm
machine width:3200 mm
machine height:3400 mm
Wrapping machine EXP-108

Wrapping machine EXP-108

Automatic machine for medium to high capacity (30 pallets/hour). 3 programs, motorised pre-stretch 230%/300%, automatic film cutting.

product designation:700 008321
packaging material - foil:mechanical stretch
max. pallet size (l x w):1200 x 800, 1050 x 1050 mm
max. pallet height:2000 mm
max. pallet weight:1650 kg
turntable speed:12 rpm.
turntable height:82 mm
turntable diameter:1500 mm
supply voltage:230 V / 50 Hz
installed power input:1.2 kW
machine height:2345 mm
machine length:2400 mm
machine width:1500 mm
mass:435 kg
Wrapping machine EXR-201 - horizontal, semi-automatic with film cutting and welding

Wrapping machine EXR-201 - horizontal, semi-automatic with film cutting and welding

For long items in stretch film. With film cutting and welding. Stainless steel conveyors.

product designation:700 009941
supply voltage:230V/50Hz
installed power input:6 kW
mass:290 kg
machine length:1163 mm
machine width:1084 mm
machine height:1512 mm
operating air pressure:6 - 7 bar
outer diameter of the winding cavity:76 mm
wrapping film - material:LDPE stretch
max. film width:76, 100, 125 mm
max. film thickness:19 - 35 my
conveyor width:560 mm
conveyor height:910 mm
min. package size item size (W x H):100 x 50 mm or 100 mm diameter
max. package size item (W x H):square 305 x 305 mm, rectangle 508 x 178 mm, circle diameter 330 mm
recommended length of package. of the subject:> 500 mm
max. foil diameter:178 mm
speed of the impeller:max. 100 rpm.
Strojní balení – LIKOP s.r.o.
