Packing Table BP-800V

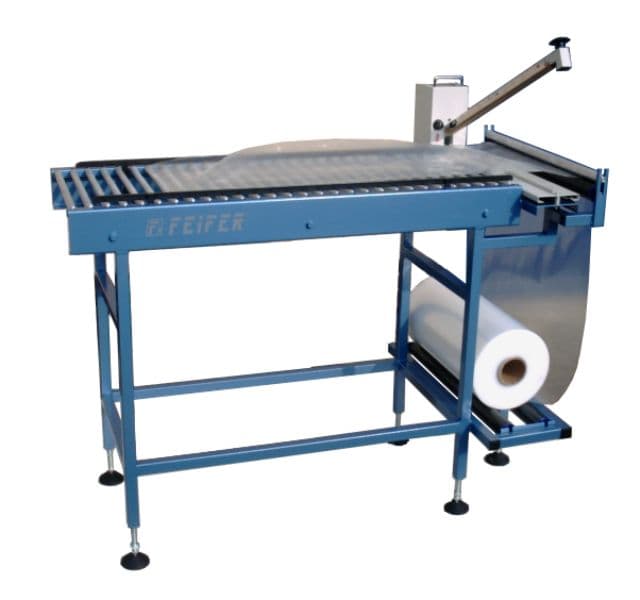

Packing Table BP-800V
The BP-800V packaging counters are designed for packaging industrial and consumer goods, printed materials, textile products and foodstuffs in heat shrink films. They can only be used in combination with a shrink tunnel (e.g. HR-Holiterm). Cheap PE film is usually used for packaging. These packers are suitable for plants with a small packing capacity (4 bales/min.). Simple machine operation : the operator unwinds the film from the unwrapper and pulls it onto the wrapping counter. He then places the item to be packed on the prepared film and slides the free end of the film under the welding jaw. Pressing the welding jaw, he then welds the foil around the wrapped object and cuts it off. At the same time, the excess foil is welded to the foil being unwound from the unwrapper. The main advantages of this wrapping machine are: low purchase and operating costs adjustable welding time depending on the thickness of the film low maintenance requirements
Interested in this product? Contact us for a custom quote.
Technical parameters
| Parameter | Value |
|---|---|
| product designation | 600 000056 |
| supply voltage | 230V/50Hz |
| installed power input | 0.6 kW |
| mass | 90 kg |
| machine length | 1360 mm |
| machine width | 1030 mm |
| packaging material - foil | PE LDPE |
| max. film width | 800 mm |
| max. width of the packed item | 550 mm |
| max. power pack. machines | 3-4 ball/min. |
| max. film thickness | 65 µm |
| working table height | 890-990 mm |
Related products

Packing Table BP-600V
For industrial and consumer goods in shrink film. With shrink tunnel.

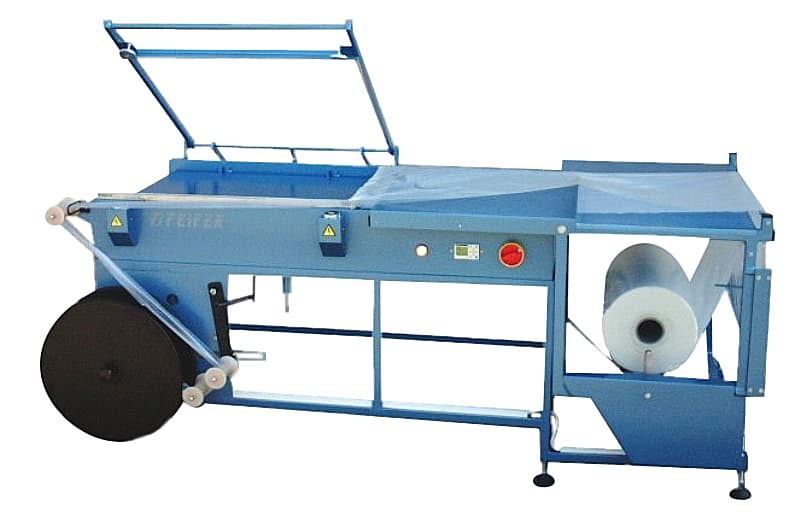

L-Bar Sealer SU-7055
Packaging machine for wrapping goods in shrink film. Used in combination with HR-Holiterm shrink tunnel.

L-Bar Sealers Series SU and Chamber Packaging Machines APH
Packaging machines for wrapping goods in shrink film. L-bar sealers SU for industrial use, chamber sealers APH for consumer goods.

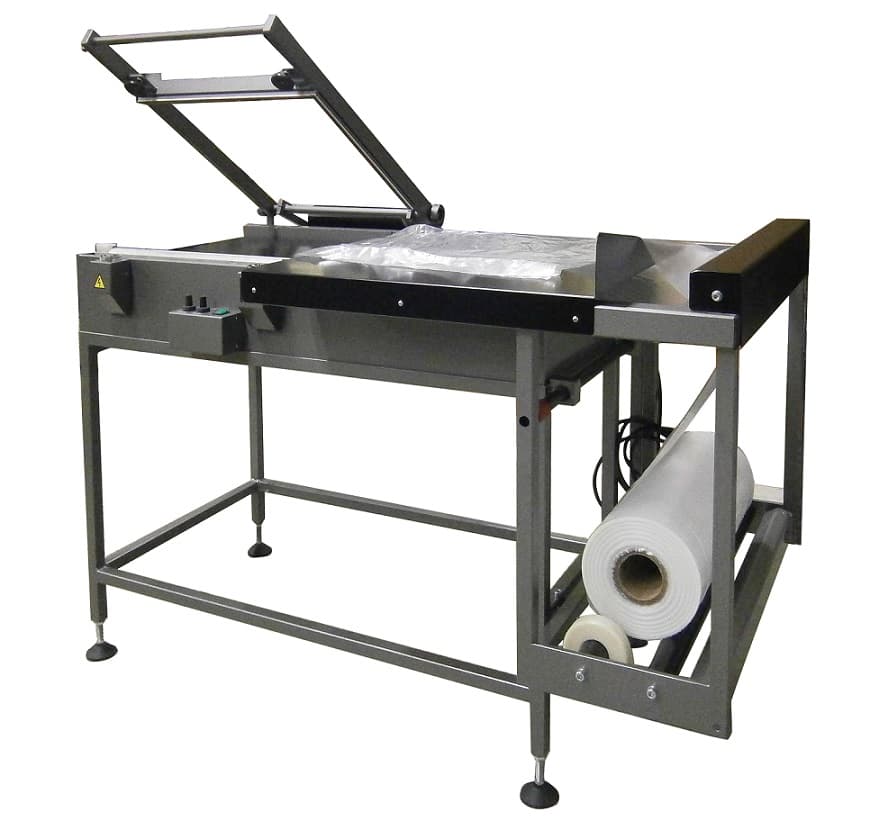

L-Bar Sealer SU-2535
